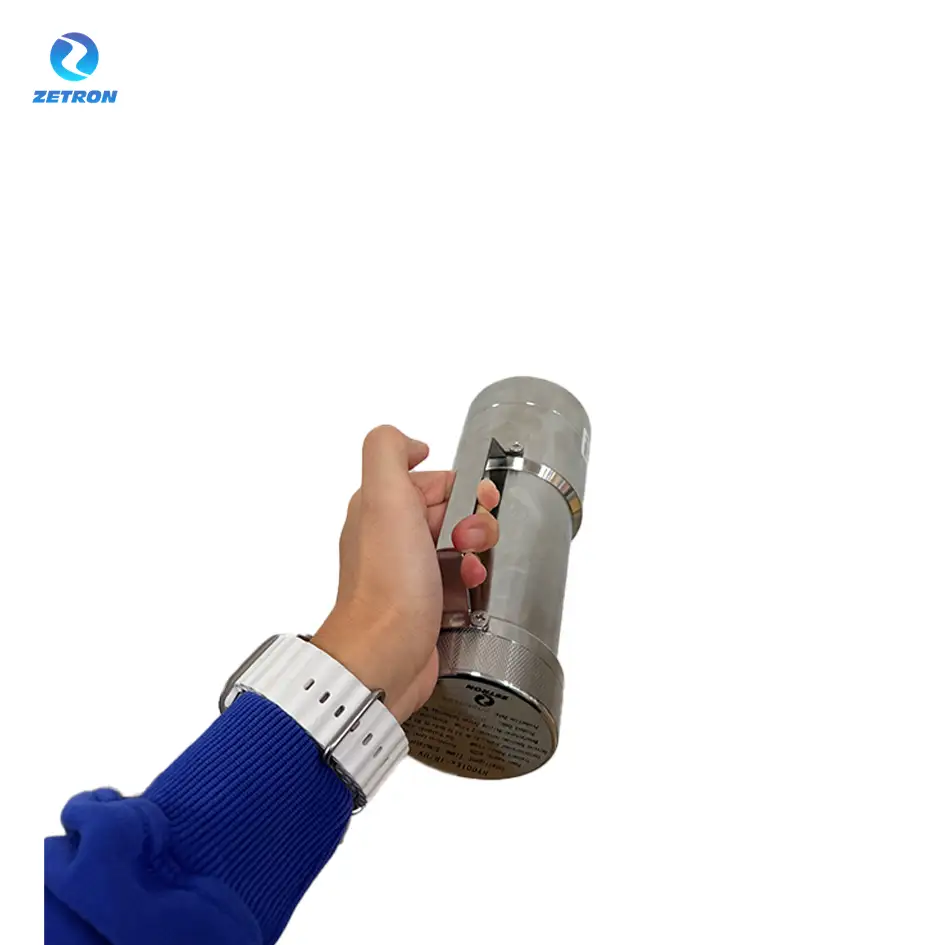

Portable Flame Detector Tester with IR and UV Simulation – HY001-IR/UV

Fire Safety Flame Simulation Device for Field Inspection and Testing – HY001-IR/UV

A 24V/3000mAh lithium - ion rechargeable battery is installed inside the flame simulator.
When the power switch is turned on, the battery level indicator light on the front panel will display the current battery level (as shown in Figure 1).
When the battery level is less than or equal to 30%, the battery should be charged in time. Insert the charger into the charging port, and when the charging indicator light lights up, it indicates that the battery is being charged. The charging time should be more than 3h.

Parameter	Specifications
Emission Spectrum	Infrared: 2.7–11μm Ultraviolet: 180 - 300nm
Effective Range	IR: ≤50 cm
Emission Angle	≤30°
Working time	≤3h (continuous emission state)
Charging Voltage	DC24V
Power Consumption	<30W
Temperature Range	-10℃ to +55℃
Humidity Range	0–95% RH (non-condensing)
Weight	1.2 kg
Housing Material	Cast Aluminum
External dimensions	190mm × 70mm × 105mm
Protection level	IP65
Package Contents	One flame simulator; One set of operating instructions
