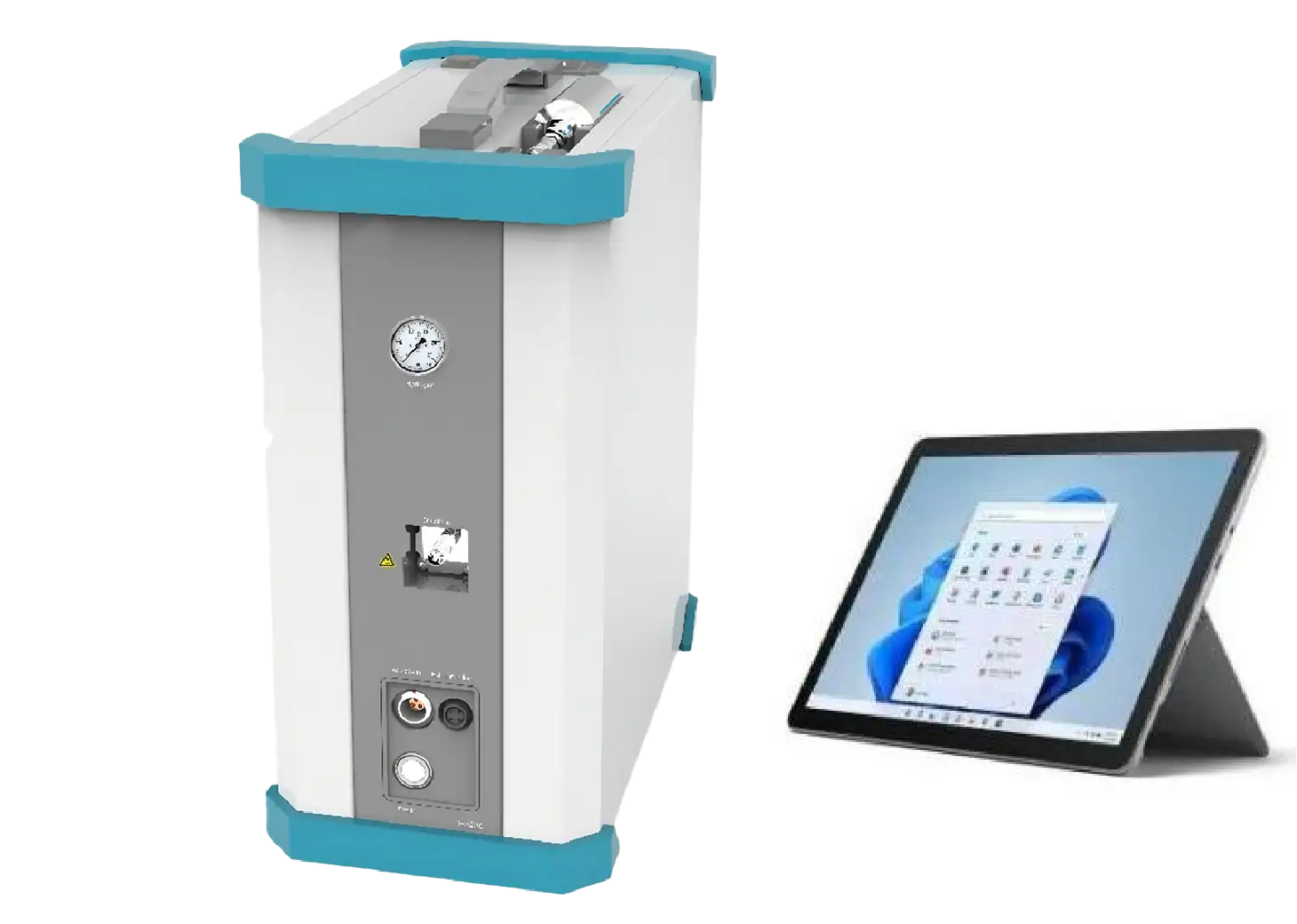

PTM400 Portable VOC Analyser

Product Description

The PTM400 portable VOC analyzer, combining chromatographic analysis technology with a hydrogen flame ionization detector, fully complies with the requirements of HJ1012-2018 and HJ38-2017 standards, and can be used to test total hydrocarbons, methane, non-methane total hydrocarbons and benzene series in ambient air and exhaust gas. The PTM400 is a highly integrated portable instrument that collects the sample to be tested and enters the quantitative loop, which is switched into different chromatographic columns for separation through valves. The total hydrocarbons and methane or benzene series enter the FID detector in turn, and the concentration of each component is measured respectively. The built-in processor obtains the values of total hydrocarbons, methane, non-methane total hydrocarbons and benzene series.

Features

PTM400 Portable VOC Analyser 2 Highly integrated

PTM400 Portable VOC Analyser 3 Integrate the online monitoring system configuration into the portable instrument, with multiple application scenarios, and both online analysis and laboratory offline analysis capabilities

PTM400 Portable VOC Analyser 4 High temperature throughout the process

PTM400 Portable VOC Analyser 5 High temperature heating throughout the process to avoid condensation and loss of samples; special treatment of sampling pipelines to minimize residue and adsorption

PTM400 Portable VOC Analyser 6 Safe and reliable

PTM400 Portable VOC Analyser 7 Adopt solid-state hydrogen storage module, safe and stable, high hydrogen purity

PTM400 Portable VOC Analyser 8 Low maintenance cost

PTM400 Portable VOC Analyser 9 Built-in gas source, reusable; no special consumables, consumable parts support separate replacement

PTM400 Portable VOC Analyser 10 Intelligent and friendly

PTM400 Portable VOC Analyser 11 Automatic flame sensing, automatic judgment of ignition status and flameout protection; The software is fully functional and easy to use, the data handheld terminal (PDA) is wirelessly connected to the host, and the communication distance can reach 50 m

PTM400 Portable VOC Analyser 12 Easy to carry

PTM400 Portable VOC Analyser 13 The single machine is light in weight, easy to carry and operate

Functional parameters

Main parameters	Parameter range
Detection object	Total hydrocarbons, methane, non-methane hydrocarbons
	Methane, ethane, propane, ethylene, acetylene, propylene, n-butane, isobutane, 1,3-butadiene, etc. (optional)
	Benzene, toluene, ethylbenzene, o-, m-, p-xylene, isopropylbenzene, styrene (optional)
Detection principle	GC -FID , chromatographic column separation
Measuring range	0 ~35000 mg / m3 , range can be customized
Detection limit	50 ppb (methane); 50 ppb (benzene)
Repeatability	≤1.5 %
Accuracy	≤ ± 1%FS
Analysis cycle	Total non-methane hydrocarbons ≤ 1min , benzene series ≤ 3.5min
power supply	AC220V 50HZ or DC24V Battery life can last more than 4 hours in continuous use


Work Environment	-10~50 ° C , 10 ~90% RH
weight	About 12.5kg

Packing List

Standard configuration:

1 PTM400 host

1 metal hydride hydrogen storage bottle

1 dedicated power cord

Rechargeable battery module

Data handheld terminal (PDA)

1 USB software key

Gas sampling line (including 1 pre-filter)

1 software operation manual

Portable transport box

Optional configuration:

GC-FID benzene measurement module

Optional accessories:

HY1011 flue gas flow rate monitor

4G DTU module (LAN/WIFI)

HY205 vacuum box gas sampler

Application

VOC control monitoring equipment operation and maintenance inspection
Pollution source online monitoring system comparison
Enterprise emission assessment
Environmental monitoring law enforcement
Plant boundary NMHC online monitoring system comparison
