Zetron Instrument focuses on providing customized solutions for precision analysis and monitoring.

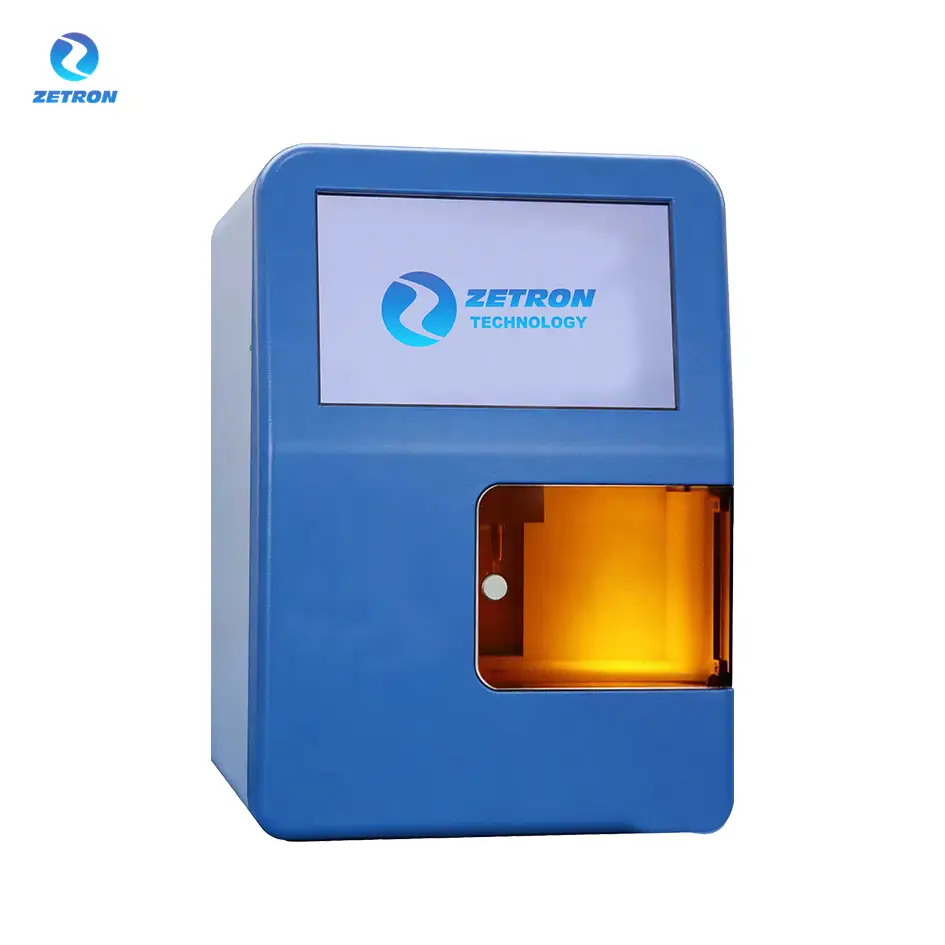

OSM-V3.5 Osmotic pressure molar concentration meter

User-friendly design, 10- inch color touchscreen, simple and quick operation: It features electronic signature and user hierarchical management functions, stores data for querying by time, and can store 1 million detection data records. Up to 1000 accounts can be set up. 1000 product names External printer (can accept large diameter paper) It can perform single-point or multi-point (31-point) linear calibration to ensure the instrument's detection accuracy across all measurement ranges while maintaining stability. The temperature probe uses a lead screw linear guide motor design, and the entire testing process can be completed simply by operating on the touch screen. High-precision sensor, with high measurement accuracy and good repeatability. It adopts a high-performance cooling module , which has a short pre-cooling time, fast detection speed, and facilitates continuous detection. It requires small sample volumes to meet the needs of various fields. It can simultaneously display the osmolality, freezing point, and molar ratio of the sample. The cooling system uses a heat transfer fluid-free design, eliminating the need for frequent maintenance. The sample name can be entered manually; no keyboard connection is required. It has host computer software and can export data to PDF format. Connectable to Lims systems It has functions such as function reminders and instrument information notes.

Inquiry

Write a Review

Product Description

The osmolality meter , based on Raoult's freezing point theory and the proportional relationship between the freezing point depression and the molar concentration of a solution, uses a highly sensitive temperature sensing element to measure the freezing point of different solutions, thereby determining the osmolality of the measured solution. It is widely used in the testing and research of osmolality in pharmaceuticals, drug analysis, biology, food, and medical fields.

Features

OSM-V3.5 Osmotic pressure molar concentration meter 3 User-friendly design, 10- inch color touchscreen, simple and quick operation:

OSM-V3.5 Osmotic pressure molar concentration meter 4 It features electronic signature and user hierarchical management functions, stores data for querying by time, and can store 1 million detection data records.

OSM-V3.5 Osmotic pressure molar concentration meter 5 Up to 1000 accounts can be set up.

OSM-V3.5 Osmotic pressure molar concentration meter 6 1000 product names

OSM-V3.5 Osmotic pressure molar concentration meter 7 External printer (can accept large diameter paper)

OSM-V3.5 Osmotic pressure molar concentration meter 8 It can perform single-point or multi-point (31-point) linear calibration to ensure the instrument's detection accuracy across all measurement ranges while maintaining stability.

OSM-V3.5 Osmotic pressure molar concentration meter 9 The temperature probe uses a lead screw linear guide motor design, and the entire testing process can be completed simply by operating on the touch screen.

OSM-V3.5 Osmotic pressure molar concentration meter 10 High-precision sensor, with high measurement accuracy and good repeatability.

OSM-V3.5 Osmotic pressure molar concentration meter 11 It adopts a high-performance cooling module , which has a short pre-cooling time, fast detection speed, and facilitates continuous detection.

OSM-V3.5 Osmotic pressure molar concentration meter 12 It requires small sample volumes to meet the needs of various fields.

OSM-V3.5 Osmotic pressure molar concentration meter 13 It can simultaneously display the osmolality, freezing point, and molar ratio of the sample.

OSM-V3.5 Osmotic pressure molar concentration meter 14 The cooling system uses a heat transfer fluid-free design, eliminating the need for frequent maintenance.

OSM-V3.5 Osmotic pressure molar concentration meter 15 The sample name can be entered manually; no keyboard connection is required.

OSM-V3.5 Osmotic pressure molar concentration meter 16 It has host computer software and can export data to PDF format.

OSM-V3.5 Osmotic pressure molar concentration meter 17 Connectable to Lims systems

OSM-V3.5 Osmotic pressure molar concentration meter 18 It has functions such as function reminders and instrument information notes.

Functional parameters

Measurement range	0～3000 mOsmol
Sample volume	50-100 μl
Test time	≤ 100S
Pre-cooling time	≤3min
Detection accuracy	±2mOsmol/kg (≤400mOsmol/kg)

	≤±1% (＞400mOsmol/kg)
Molar concentration value	Two decimal places
Resolution	0.0 1 mOsmol
Repeatability ( RSD)	≤1%
Linearity	≤1%
Ambient temperature	10 ～30℃, recommended 15～25℃
Ambient humidity	≤60%
power supply	220V～ 50Hz 150VA
External dimensions	300 mm * 350 mm * 420 mm
Weight	17 kg

Application

Pharmaceutical Industry

Used for osmolality testing of pharmaceutical preparations such as injections, infusions, ophthalmic solutions, and dialysis fluids. It ensures formulation safety, isotonicity compliance, and consistency with pharmacopoeia requirements during R&D, production, and quality control.

Drug Analysis & Research

Applied in drug development and analytical laboratories to study formulation characteristics, solute concentration, and stability. Accurate osmolality measurement supports bioavailability research, compatibility studies, and process optimization.

Biotechnology & Life Sciences

Widely used in biological research, cell culture, fermentation media, and buffer solution testing. Precise osmolality control helps maintain cell viability, optimize growth conditions, and ensure reproducibility in biological experiments.

Food & Medical Applications

Suitable for testing osmolality in food products such as dairy, beverages, and nutritional solutions, as well as medical nutrition and clinical samples. It supports product formulation, quality control, and research related to taste, stability, and physiological compatibility.
