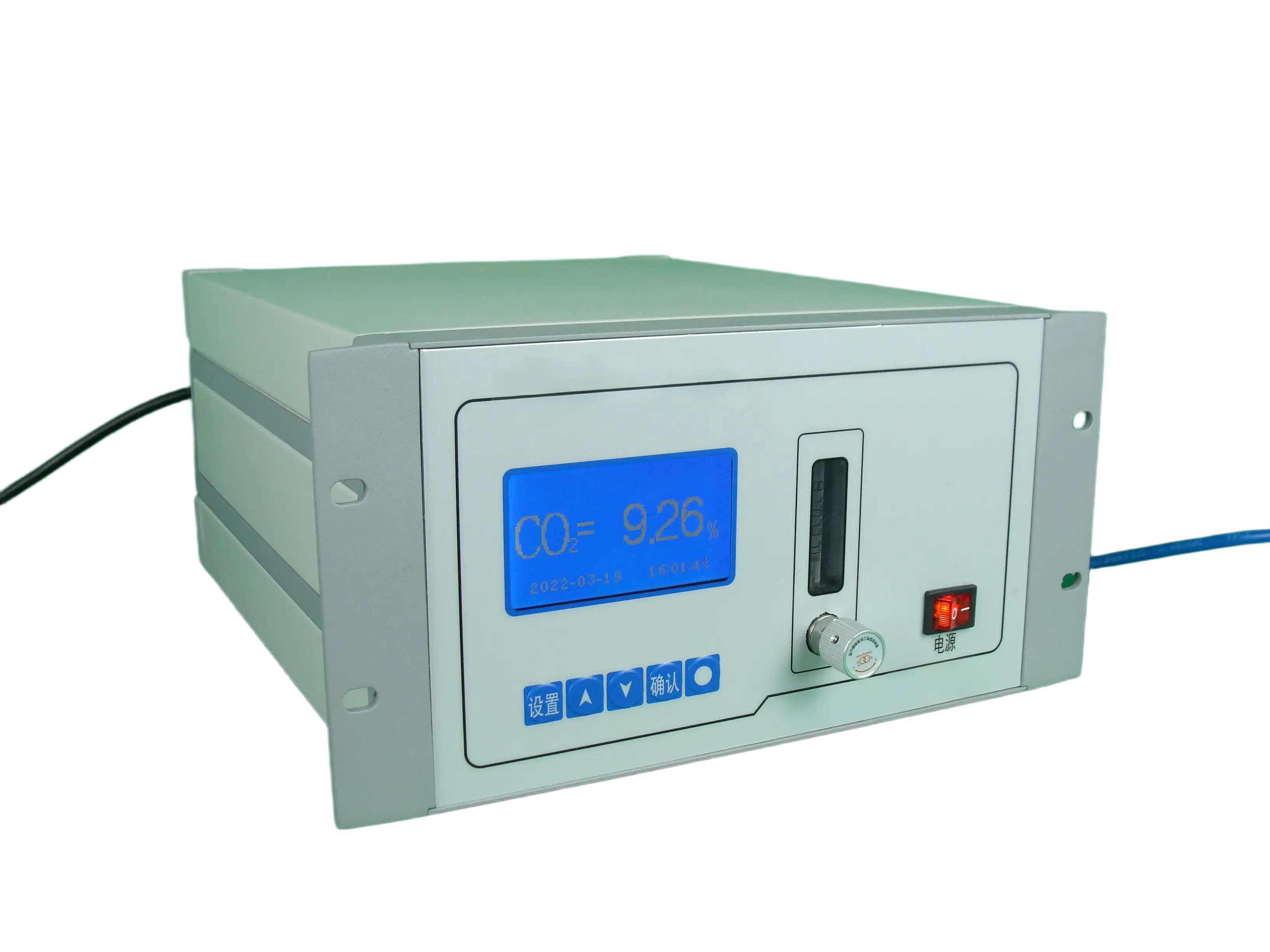

MIC616N Online Carbon Dioxide Gas Analyzer

Detection Range: 0.0–30.0% CO2;

Uncertainty: ≤ ±2% F.S.;

Stability: ≤ ±1% F.S./7d;

Repeatability: ≤ ±1%;

Sample Gas Flow Rate: 500 ± 50 mL/min;

Sample Gas Pressure: 0.05 MPa ≤ Inlet Pressure ≤ 0.25 MPa;

Resolution: 0.1% CO2;

Warm-up Time: 5 minutes;

Contact Capacity: 220 VAC 2A; 24 VDC 2A;

Output Signals: 4–20 mA current signal and RS485 signal;

Overall Dimensions: 270 (W) × 132 (H) × 345 (D) mm;

Panel Cutout Dimensions: 238 (W) × 132 (H) mm;

Operating Environment: Temperature: -5°C to +50°C;

Humidity: ≤ 90% RH;

Power Supply: ~220 V ± 10%, 50/60 Hz;

1Fuse: ~220 V/1 A (Built into the power socket; one serves as a spare);

Weight: Approx. 3.5 kg.
