ACH-1 Air Capture Hood

Inquiry

Write a Review

Product Description

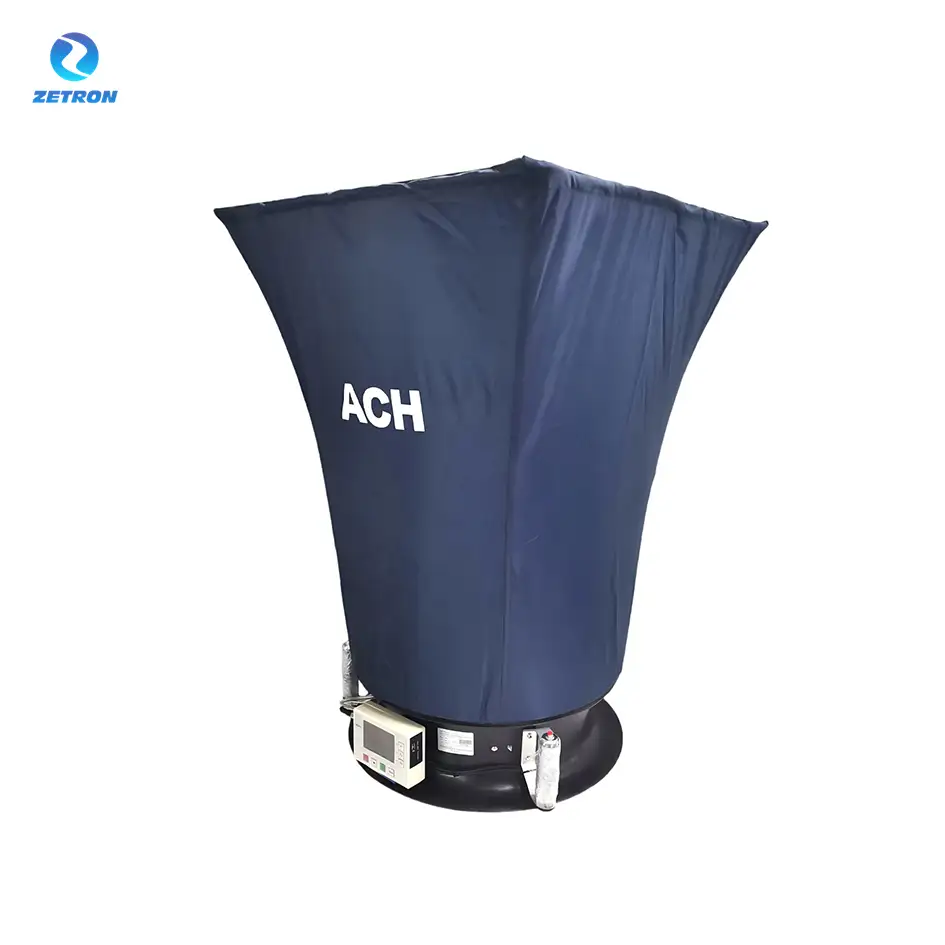

The ACH-1 Accubalance Air Capture Hood is an instrument used to measure the air volume flowing through air-outlet, diffusers and grilles. It is easy to operate; it has a high accuracy and reliability which ensures the measurement is accurate, and the results can be saved. The different sizes for its cover, random accessories, calibration certification and carrying case can be different according to the Air inlet size. The ACH-1 Accubalance Air Capture Hood is researched and developed by the cooperation of Honri Airclean and Korea Hyundai Calibration & certification, and it is tested and approved by the experts of Shanghai Institute of Measurement and Testing (SIMT). It reaches the same level of the similar products internationally on accuracy and performance.

Features

ACH-1 Air Capture Hood 6 Automatically display the wind direction: inlet flow or outlet flow;

ACH-1 Air Capture Hood 7 Conversion of the displayed units between m3/h and ft3/min;

ACH-1 Air Capture Hood 8 Compact packing makes the shipment convenient

ACH-1 Air Capture Hood 9 USB flash disk for export data, it is convenience for use

ACH-1 Air Capture Hood 10 With WIFI print function

ACH-1 Air Capture Hood 11 Large memory for storing data(4，608 samples)

ACH-1 Air Capture Hood 12 Operation can be switched between Chinese and English

ACH-1 Air Capture Hood 13 With buzzing alarm function and if over alarm limit, the data will turn red for pre-alarm.

ACH-1 Air Capture Hood 14 Free carrying case with caster

Technical index

Measurement range		40~3600m3/h
Accuracy		±5% of read
Resolution		1m3/hr
Spec	Standard sizes	610×610mm(24”×24”)
	Optional sizes	1220×610mm
		760×760mm
		830×830mm
		915×915 mm
Weight		4.5kg (Air Capture Hood size: 610×610mm)
Power supply		Li-battery for 6 hours continuous use
Data storage		4608 samples
Accessories		Carrying case, User manual, Calibration certificate, Battery recharger
Selectable item		Printer, Tripod

Measurement range		150~3000m3/h
Accuracy		±3% of read
Resolution		1m3/hr
Spec	Standard size	610×610mm(24×24)
		760×760mm(30×30)
	Optional size	1220×610mm(48×24)
		305×610mm(12×24)
		305×1520mm(12×60)
		915×915 mm(36×36)
Weight		4.5kg (Air Capture Hood size: 610×610mm)
Battery		12 hours

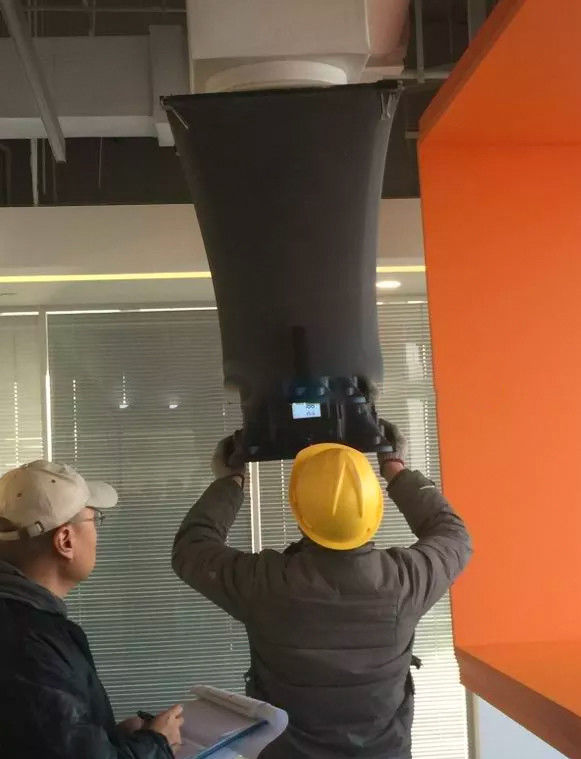

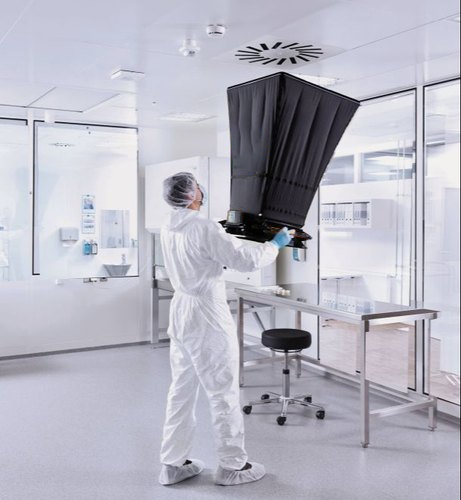

It is widely used in mensurating the in-out wind of the cleanroom、air-conditioning and the purification technologie so that the systems can be administered and their parameters are adjusted automatically.
