Zetron Instrument focuses on providing customized solutions for precision analysis and monitoring.

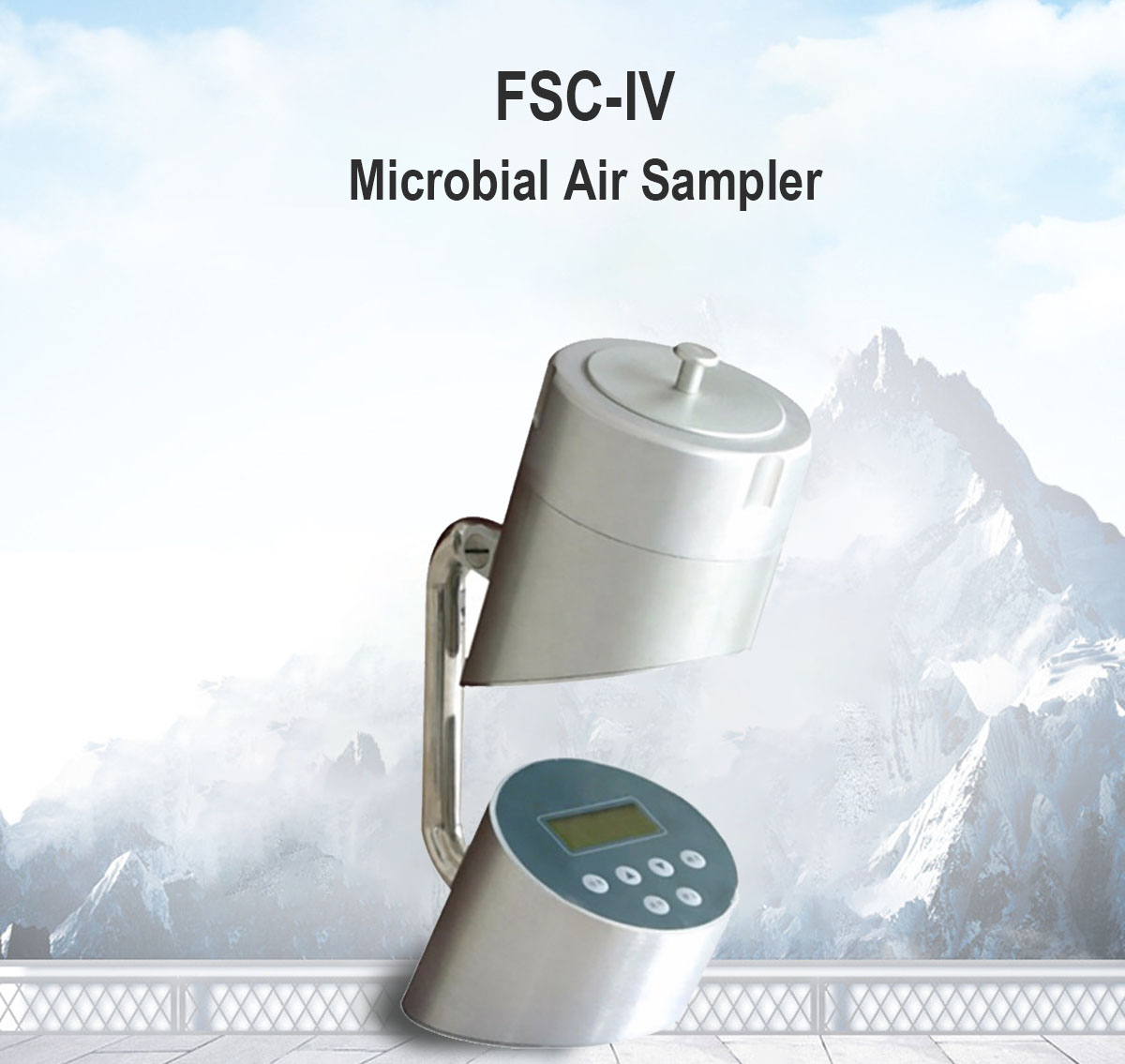

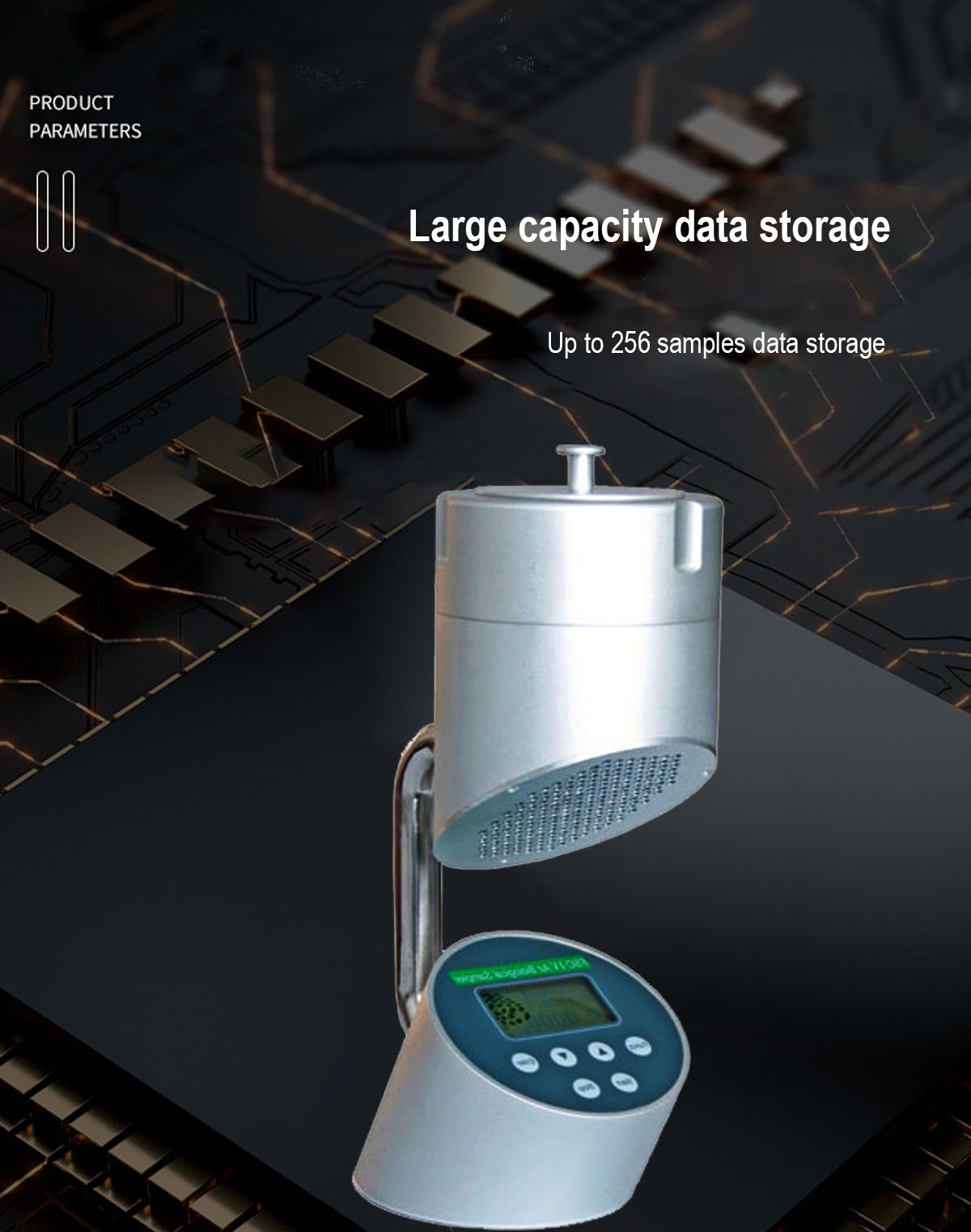

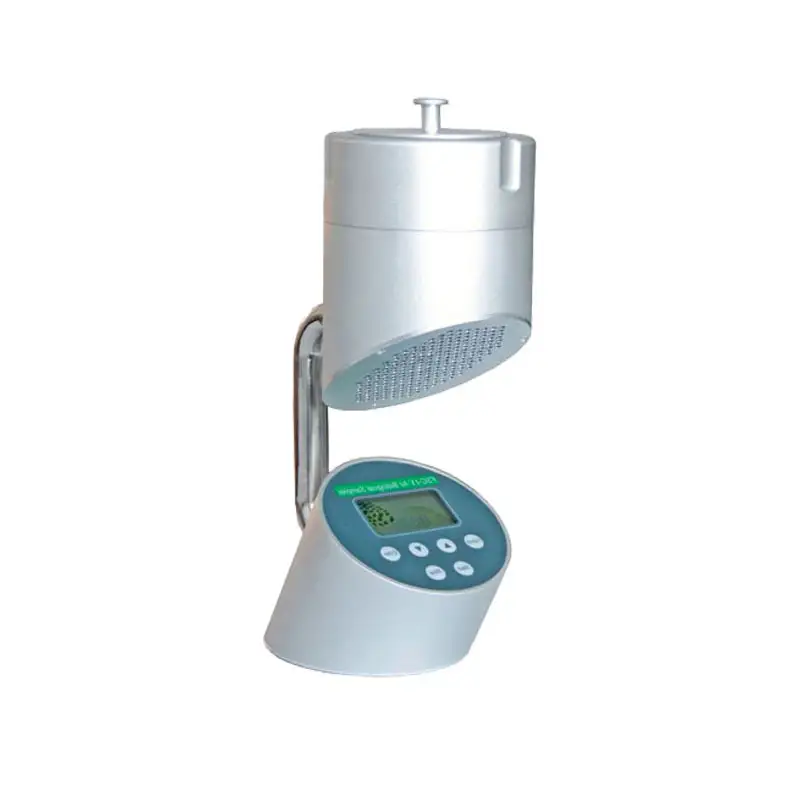

FSC-IV Biological Air Sampler is a kind of high effective air sampler, which is designed according to the principle of multi jet holes particle impact and isokinetic sampling. We provide gas detector OEM/ODM serves.
Tag: Biological air sampler、Portable air sampler、100L/min flow rate air sampler、Air sampler、Microbial air sampler、Biological microbial air sampler、Handheld air sampler、OEM/ODM air sampler、 Air biological sampler
|
Model
|
FSC-IV
|
FSC-V
|
|
Flow Rate
|
100L/min
|
|
|
Sampling Quantity
|

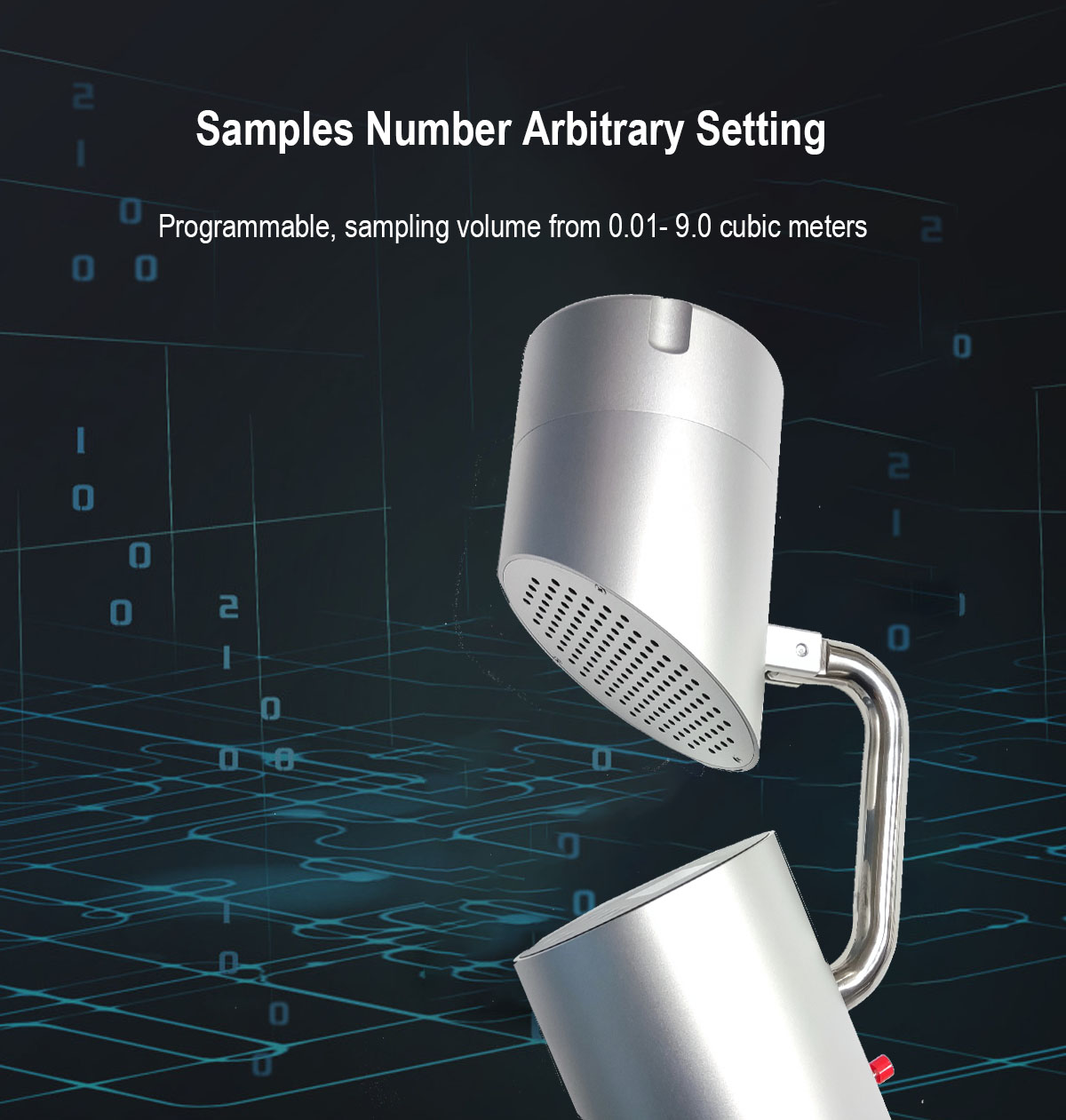

0.01 to 6.0 m3
|
0.01 to 9.0 m3
|
|
Flow Velocity of Sampling Holes
|
0.4m/s
|
0.38m/s
|
|
Basically the same as the clean room (Isokinetic sampling)
|
||
|
Material
|
Aviation aluminum
|
SUS304 stainless steel
|
|
Structure
|
PC board control,low noise pump sampling
|
|
|
Rechargeable Battery
|
DC7.4V/6800mAh
|
DC14.8V/5000mAh
|
|
Operating Time on Battery(h)
|
Working 6-8h
|
|
|
Power Supply
|
AC110V/220V±10%, 50Hz/60Hz
|
|
|
External Size(L*W*H)mm
|
120*195*300
|
235*220*180
|
|
Package Size(L*W*H)mm
|
190*380*420
|
400*380*220
|
|
Net Weight(kg)
|
2.5
|
4.8
|
|
Gross Weight(kg)
|
6
|
8.5
|
