Zetron Instrument focuses on providing customized solutions for precision analysis and monitoring.

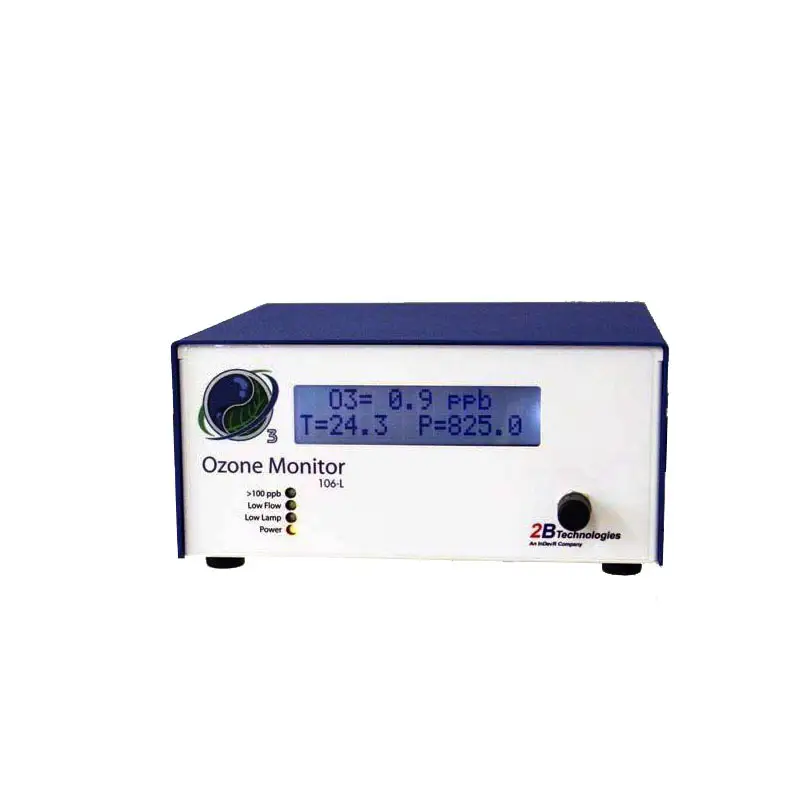

M106 Environmental Ozone Meter

The instruments are available in different optical path lengths to accommodate an extremely wide range of ozone tests, covering more than 8 orders of magnitude. In addition, the 106-H is measured online through a path designed to allow pressurized flow with the ozone generator.

Inquiry

Write a Review

M106 UV Ozone Analyzer

The M106 UV ozone analyzer is used in environmental ozone, pharmaceutical, water treatment, health appliances, food, disinfection, etc. For this purpose, the 106-L, 106-M and 106-H ozone analyzers are available, where L, M and H refer to low (0-100 ppm), medium (0-1000 ppm) and high (0-20%) ozone concentrations, respectively. . The instruments are available in different optical path lengths to accommodate an extremely wide range of ozone tests, covering more than 8 orders of magnitude. In addition, the 106-H is measured online through a path designed to allow pressurized flow with the ozone generator.

Tag: UV ozone analyzer, UV light sourse ozone analyzer, Ozone meter, Environmental ozone detector, High concentration O3 meter, OEM/ODM service

M106 UV Ozone Analyzer

Tag: UV ozone analyzer, UV light sourse ozone analyzer, Ozone meter, Environmental ozone detector, High concentration O3 meter, OEM/ODM service

Measurement principle	nm 254 UV light source
Measurement interval	10 seconds (data averaging options: 10 seconds, 1 minute, 5 minutes, 1 hour)
Flow rate	1L/min
Units	ppb, ppm, pphm, µg m -3, mg m -3 (& mol %, wt % for 106H)
Data output methods	USB, RS232, 0-2.5 V mode, 4-20 mA, LCD display
Power supply	12 V, 3.5 Watt
Dimensions	3.75 x 7.5 x 8.5 inches (10 x 19 x 22 cm)

Measurement principle	nm 254 UV light source
Measurement interval	10 seconds (data averaging options: 10 seconds, 1 minute, 5 minutes, 1 hour)
Flow rate	1L/min
Units	ppb, ppm, pphm, µg m -3, mg m -3 (& mol %, wt % for 106H)
Data output methods	USB, RS232, 0-2.5 V mode, 4-20 mA, LCD display
Power supply	12 V, 3.5 Watt
Dimensions	3.75 x 7.5 x 8.5 inches (10 x 19 x 22 cm)

The M106 UV ozone analyzer is used in environmental ozone, food, disinfection, ozone generator manufacturers, municipal water industry, industrial sewage industry, fine chemical industry, food and drinking water industry, space disinfection industry, flavor synthesis industry and other industries using ozone generator. etc.
