Zetron Instrument focuses on providing customized solutions for precision analysis and monitoring.

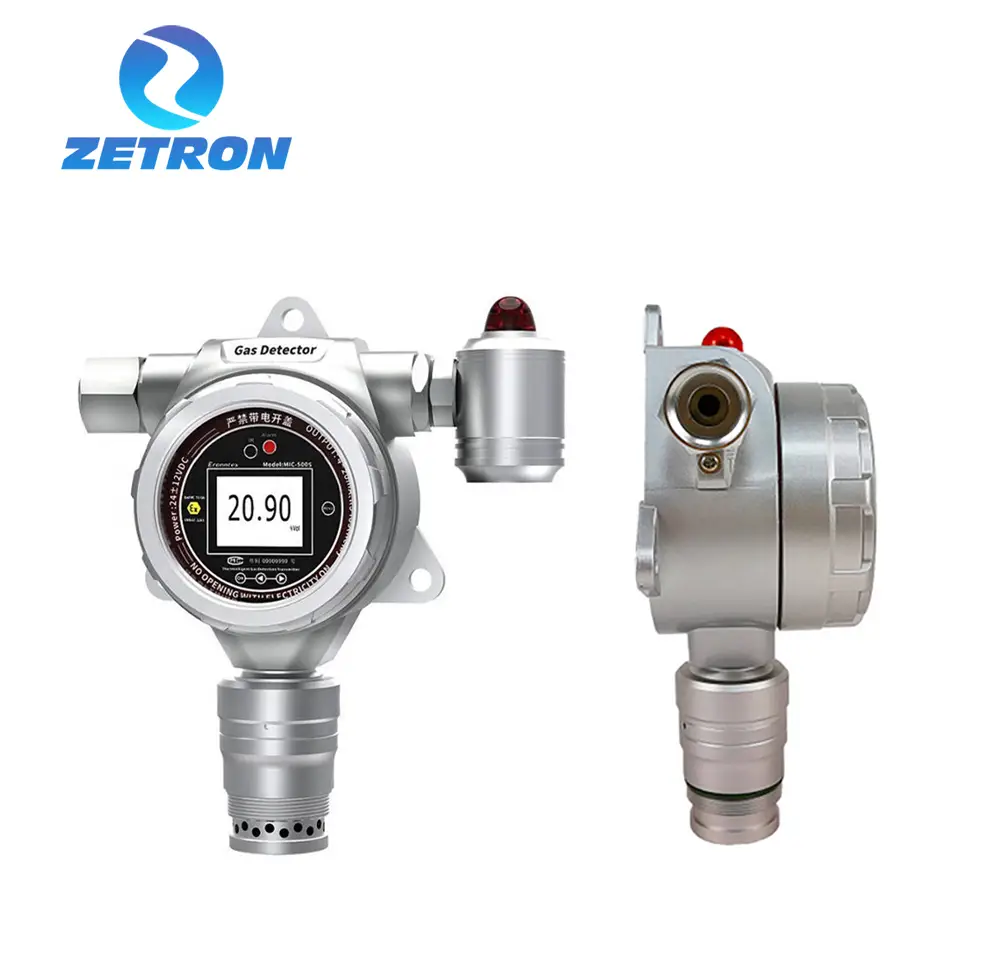

MIC500-THF PID Tetrahydrofuran Detector
Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors.
Zetron MIC500 High Precision VOC Gas Monitoring Equipments
Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm. Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors. Zero-point automatic tracking; long-term use will not be affected by the zero drift. Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements. Chinese or English interfaces can be selected.
Broad operating temperatures: -40～+70℃, and temperature compensation is supported.
|
Gases to be detected
|
Range
|
Accurancy
|
Resolution
|
Response time T90
|
|
Hydrogen chloride ( HCL )
|
0-200ppm
|
＜±2%(F.S)
|
0.1ppm
|
≤30 seconds
|
|
Phosphorus hydride ( PH3 )
|
0-5 ppm
|
＜±2%(F.S)
|
0.001ppm
|
≤30 seconds
|
|
Chlorine dioxide ( CL O2 )
|
0-1ppm
|
＜±2%(F.S)
|
0.001ppm
|
≤30 seconds
|
|
Sulfur dioxide ( SO2 )
|
0-100ppm
|
＜±2%(F.S)
|
0.01ppm
|
≤30 seconds
|
|
Nitric oxide ( NO )
|
0-100ppm
|
＜±2%(F.S)
|
0.01ppm
|
≤30 seconds
|
|
Nitrogen dioxide ( NO2 )
|
0-100ppm
|
＜±2%(F.S)
|
0.01ppm
|
≤25 seconds
|
|
Helium gas ( He )
|
0-100%Vol
|
＜±2%(F.S)
|
0.01%Vol
|
≤20 seconds
|
|
Argon gas ( Ar )
|
0-100%Vol
|
＜±2%(F.S)
|
0.01%Vol
|
≤20 seconds
|
|
Bromine gas ( Br2 )
|
0-10ppm
|
＜±2%(F.S)
|
0.001ppm
|
≤30 seconds
|
Note: Not all gases and range are listed, if you need more information, please contact us.
|
Gas
|
VOC
|
Range
|
0-100ppm，0-200ppm
other ranges can be customized
|
|
Size
|
210×170×85mm (L×H×W)
|
Weight
|
1.8 Kg
|
|
Installation method
|
Pipeline Type
Wall Mounting Type
|
Display
|
1.7-inch high-definition color screen
|
|
Environment
|
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
|
Approvals
|
