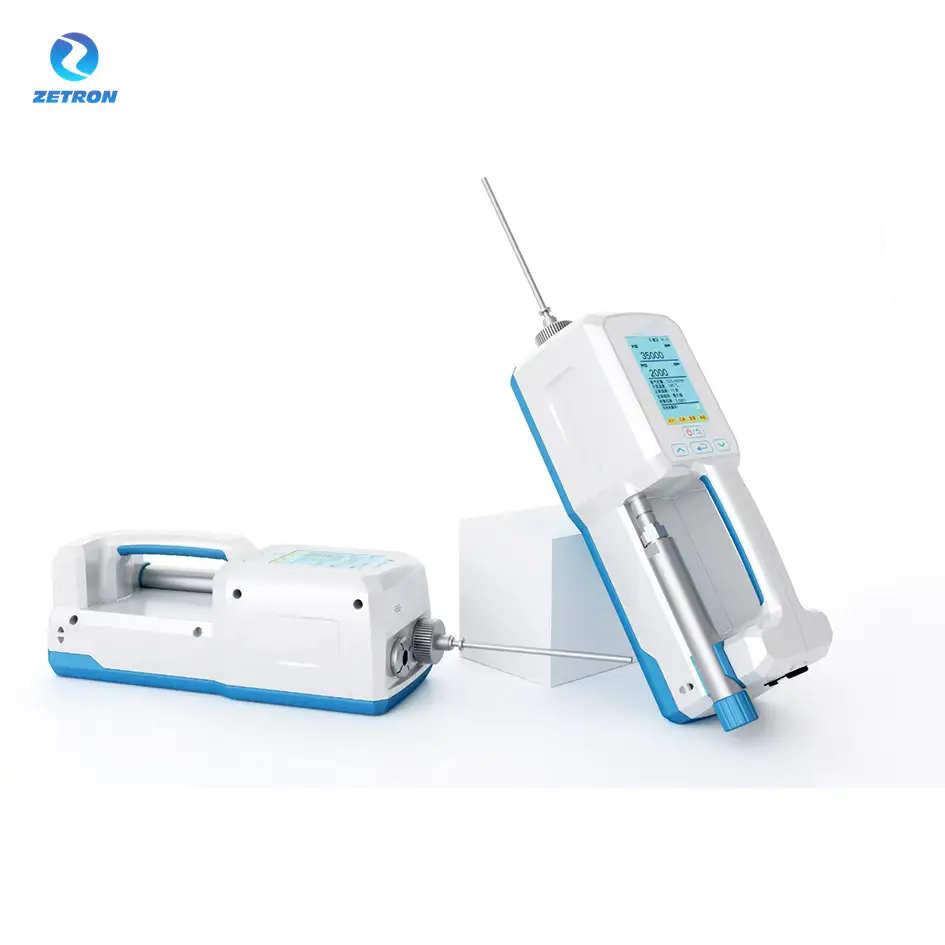

Handheld Organic Gas Analyzer for Portable VOC Detection and Monitoring – PTM100-H 1

Handheld Organic Gas Analyzer for Portable VOC Detection and Monitoring – PTM100-H 2

Handheld Organic Gas Analyzer for Portable VOC Detection and Monitoring – PTM100-H 3

Handheld Organic Gas Analyzer for Portable VOC Detection and Monitoring – PTM100-H 4

Handheld Organic Gas Analyzer for Portable VOC Detection and Monitoring – PTM100-H 5

Handheld Organic Gas Analyzer for Portable VOC Detection and Monitoring – PTM100-H

Miniature FID detector with performance comparable to online systems. EPC precisely controls hydrogen flow rate to ensure data accuracy. Solid-state hydrogen storage cylinder provides safe and stable hydrogen supply. Detachable and quickly replaceable battery for long-lasting operation. 3.5-inch screen and buttons for two-step detection startup. Reserved interface for expandable sensors. Stable and reliable signal processing technology. Fully digital monitoring and intelligent diagnostics. Explosion-proof rating: Ex db ia IIC T4 Gb.

Inquiry

Write a Review

Main parameters	Parameter range
Measuring range	FID: 0～ 45,000 ppm
Measuring range	PID: 0～2,000 ppm , multiple ranges available; [Optional configuration]
Method detection limit	FID: 0.5 ppm methane
Method detection limit	PID: 0.5 ppm isobutylene
Accuracy	±5% of reading or ±1 ppm, whichever is greater
Accuracy	±5% of reading or ±1 ppm, whichever is greater
Repeatability	FID: 2% at 500 ppm methane
Repeatability	PID: 1% at 100 ppm isobutylene
Responding to an event (T 90 )	FID: ≤3.5 s (10000ppm methane)
Responding to an event (T 90 )	PID: ≤3.5 s ( 5 00ppm isobutylene)
Sampling flow	≥500 ml/ min ( adjustable)
Battery life	≥4 hours (0℃)
Hydrogen endurance	≥ 15 hours
Power adapter	DC8.4 V 1A
Work Environment	-10~45° C , 10 % ~95% RH
Gas interface	1/4 inch
Main parameters	Parameter range
