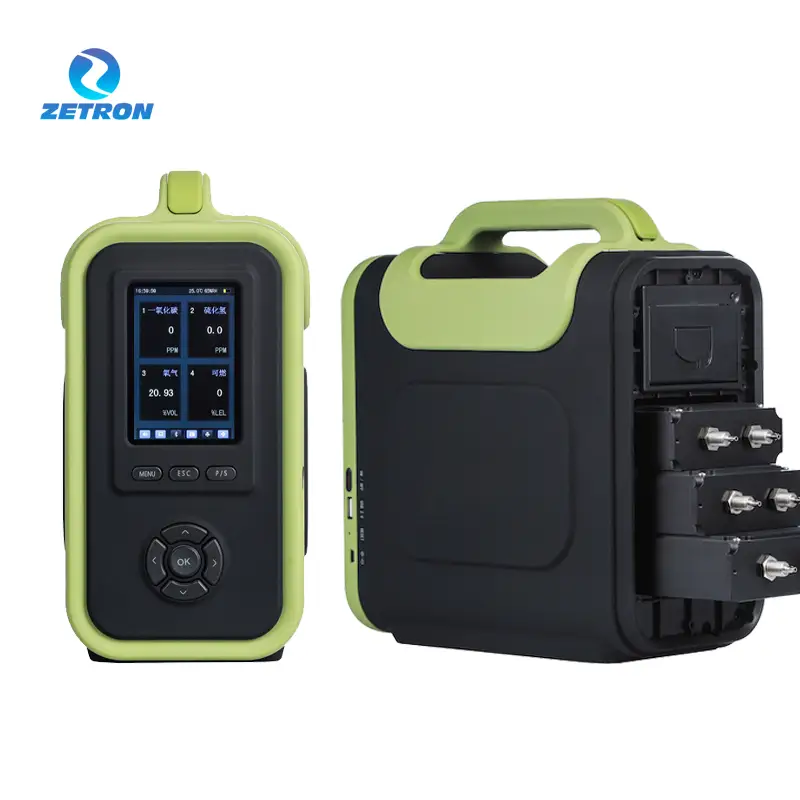

Zetron PTM100-AQ Air Quality Monitoring Analyzer

PTM100-AQ is a portable, full-featured air quality monitoring analyzer. It is widely used in air quality monitoring and emission pollution monitoring.

Inquiry Download manual

Details

PTM100-AQ Air Quality Monitoring Analyzer

PTM100-AQ is a portable, full-featured air quality monitoring analyzer. It is widely used in air quality monitoring and emission pollution monitoring. It can be equipped with 1-9 gas sensors plus 1 dust sensor and 1 temperature& humidity sensor, which can detect gas, dust concentration, temperature, humidity and dew point at the same time. PM0.3, PM0.5, PM1.0, PM2.5, PM5.0, PM10.0 can be detected at the same time to meet a variety of detection needs. SKY8000-AQ focuses on the accuracy of air quality detection and user experience. It support RS485 s ignal transmission, with datalog functions, through wireless d ata transmission, the measurement data can be transmitted to the cloud platform in real time.


Tags: 18in1 Gases Detector, Industrial Emission Gas Meter, Toxic Gas Concentration Alarm, Combustible Detection Detector, Complex working environment gas monitor, OEM/ODM Service.

Parameter


Weight 3700g
Size (H x W x D)260*230*120mm
Sensors

PM10:(0~1000)ug/m3,PM2.5:(0~1000)ug/m3,SO2:(0~500)ppb,NO2:(0~500)ppb,O3: (0~500)ppb

,CO: (0~4000)ppb,TVOC: (0~2000)ppb, PM2.5/PM10 0-1000μg/m3,Temperture-40℃~+120℃,Humidity 0-100%RH

Detection principle Electrochemical(CO, O2,NOx, SO2), Laser(PM2.5/10), Thermosensitive(Tem), Humidity Sensitivity(Hum)
Battery

Large capacity rechargeable lithium battery,5400mAh/11.1V(internal printer type)or 10000mAh/3.7V

 (external printer type)working hours are more than 32h with single gas and 24h with six gases together

Precision ≤±2%F.S. (higher precision is available)
Response Time ≤10S
Zero shift ≤±1%(F.S./year)
Display

Formula, gas concentration data, measurement trend curve, gas curve, battery, time. Optional:

 temperature,humidity, pump condition, wireless status, printer status

Temperature -20℃～50℃
Humidity 0-95%RH (non-condensing)
Explosion-Proof Ex ic IIC T3 Gc
Degree of protection IP65
Screen 3.5-inch hd LCD screen with resolution 320* 480
Pump flow rate 10 grades adjustable, flow range: 0-500 cc/Min.
Alarm Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Data storage Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval.
Approval CE, CNEX explosion proof certificate, CMC(China Metrology Certification)
Warranty 12 months


Application

Industry Application:Park, woodland, Municipal Engineering, Ports, warehousing, airports, Railway tunnel, Community, school, hospital, other urban construction.
