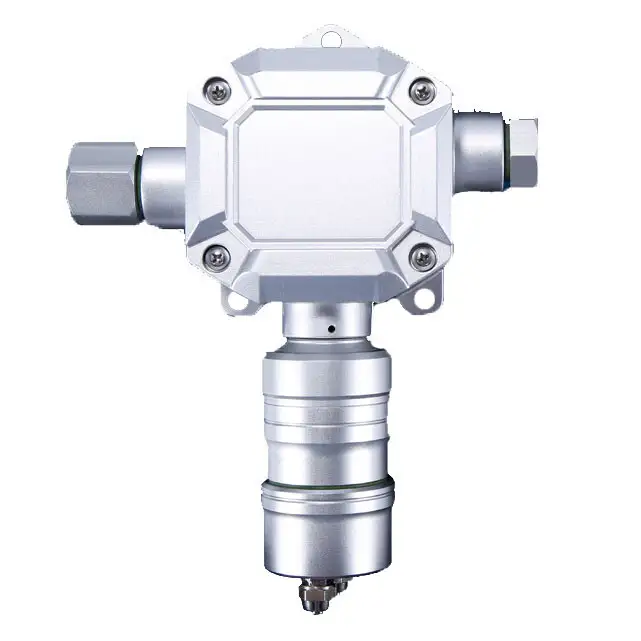

MIC300-VOC Fixed Type VOC Monitor

MIC300 is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space; and gas leakage alarm. We can offer OEM/ODM service.

Inquiry Download manual

Details

MIC300-VOC Fixed Type VOC Concentration Gas Analyzer
MIC300 is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space; and gas leakage alarm. The types for detection are more than 500 types. Strong, durable and explosion-proof shell is suitable for the use at a variety of hazardous places and harsh industrial environments, is widely used in the industries such as petroleum, chemical, metallurgy, refining, gas transmission and distribution, biochemical and pharmaceutical, and so on.


Gases to be detected
Range
Accurancy
Resolution
Response time T90
Ethylene ( C2 H4 )
0-100%LEL
＜±2%(F.S)
0.1%LEL
≤30 seconds
Acetaldehyde
0-10ppm
＜±2%(F.S)
0.01ppm
≤30 seconds
Ethanol ( C2 H6O )
0-100ppm
＜±2%(F.S)
0.01ppm
≤30 seconds
Methanol ( CH4O )
0-100ppm
＜±2%(F.S)
0.01ppm
≤30 seconds
Combustible gas ( EX )
0-100%LEL
＜±2%(F.S)
0.1%LEL
≤10 seconds
Methane ( CH4 )
0-100%Vol
＜±2%(F.S)
0.1%Vol
≤10 seconds
Oxygen gas ( O2 )
0-30%Vol
＜±2%(F.S)
0.01%Vol
≤10 seconds
Nitrogen gas ( N2 )
0-100%Vol
＜±2%(F.S)
0.01%Vol
≤10 seconds
Hydrogen gas ( H2 )
0-40000ppm
＜±2%(F.S)
1ppm
≤30 seconds
Note: Not all gases and range are listed, if you need more information, please contact us.

Parameter

Type
Fixed Gas Detector
Detection range
0~ 10ppm
0~ 20ppm
0~50ppm
0~100ppm
Other ranges can be customized
Resolution
0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),Other ranges can be customized
Detection principle
Electrochemical, infrared, thermal conductivity, PID photoionization, and so on.
Depending on the type of gas, range, field environment and user demand,
Sensor can be customized
Sensor service life
Electrochemical principle: 2 ~ 3 years;
Infrared principle: 5 ~ 10 years;
Thermal conductivity: 5 years
Allowable error
≤±3% F.S (other or higher precision levels can be customized)
Linearity
≤±2%
Repeatability
≤±2%
Uncertainty
≤±2%
Response time
T90≤30 seconds
Recovery time
≤30 seconds
Working environment
 Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular)
Working voltage
12 ~ 30VDC direct current
the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
Power supply reference
24V, 2.1A is possible to drive 40 units of toxic gas detector,
or 15 units of flammable, infrared gas detector.
Working method
Fixed type installation, online detection, diffusion type measurement
Protection level
IP65
Explosion-proof mark
ExdⅡCT6, certificate number: CNEx15.1283
Exterior dimensions
233×205×65mm (L×H×W)
Weight
1.0 Kg
Standard accessories
Manual, qualification certificate, warranty card, outer packaging box

Application

All the cases which requires the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
