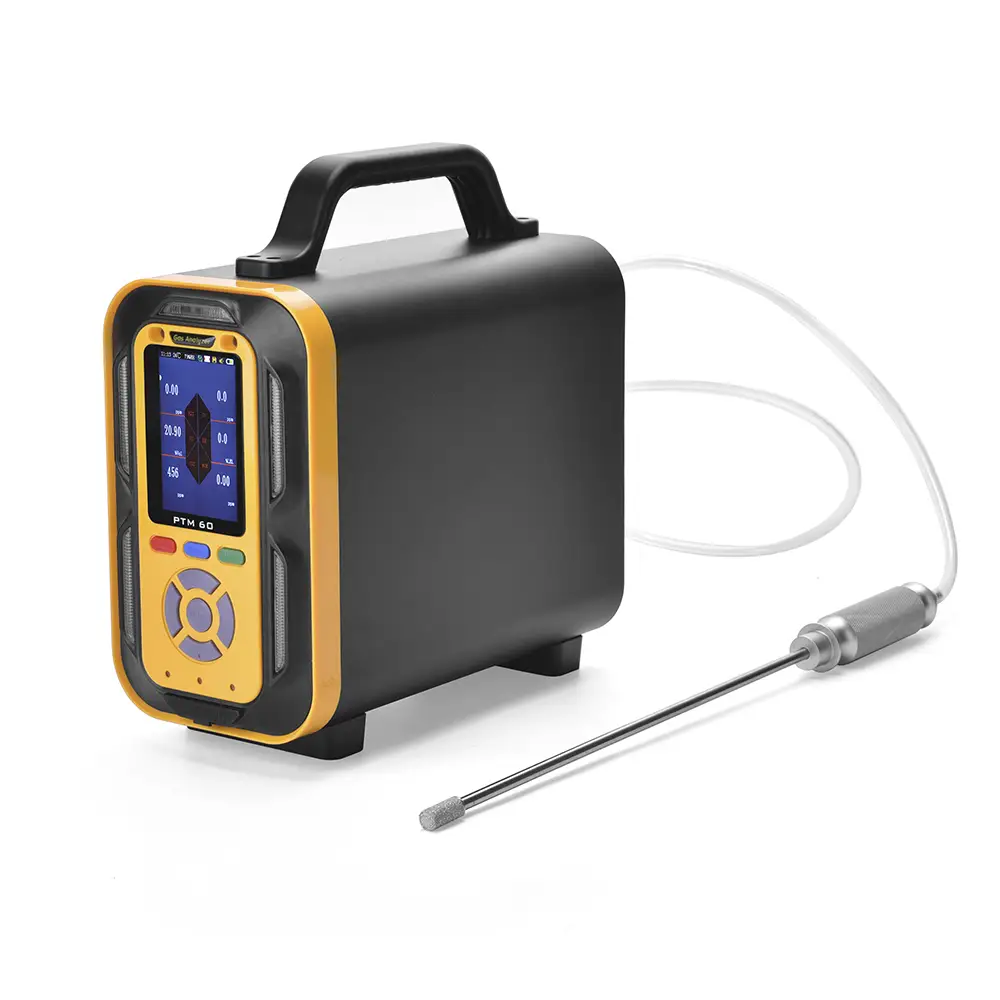

PTM600-Bio Infrared Biogas Detector

PTM600-Bio designed to meet Global Renewable Energy and Carbon Credit digester project requirements, it is the ideal field instrument for anaerobic digester gas analysis. We can support OEM/ODM service.

Inquiry Download manual

Details

PTM600-Bio portable infrared biogas detector

Arbitrary combination of 1 ~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.


Customer cases


Tag: Infrared biogas analyzer、 Biogas monitor、Waste water detector、Food Processing biogas monitor、 anaerobic digester gas analysis、OEM/ODM detector、Portable biogas detector


Parameter

Gases to be detected
Arbitrary combination of 1 ~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.
Detection range
CH4: 0～100%、CO2: 0～100%、 O2: 0-25%VOL、H2S: 0～5000ppm
Accuracy
CH4:1% VOL、CO2:1% VOL、O2：1% VOL、H2S: 1ppm
Working environment
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH
Sample gas temperature
-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Power supply
3.6VDC, 10000mA high capacity rechargeable polymer battery
Display mode
3.5-inch high-definition color screen
Detection mode
Built-in pump-suction type measurementFlow rate at 800 ml / min

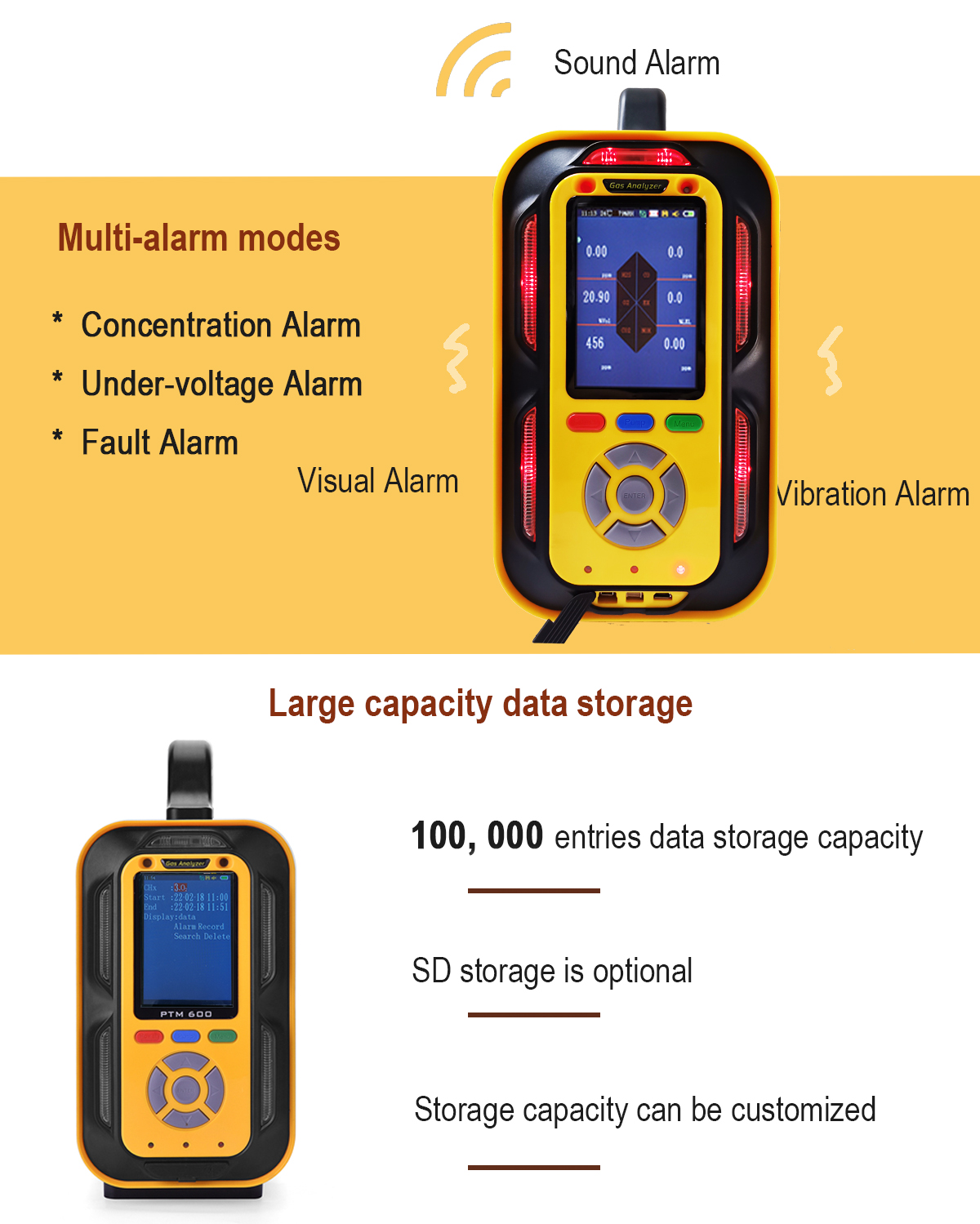

Alarm mode
Sound & light alarm, vibration alarm, turning off the alarm.
Protection level
IP66
Explosion-proof type
Intrinsically safe type
Explosion-proof mark
Exia II CT6
Exterior dimensions
230×210×120 mm (L×H×W)
Weight
2.5Kg

Application


Farms
Water Recovery Facilities
Breweries and Food Processing
Methane Recovery

Waste Water

Anaerobic Digesters
