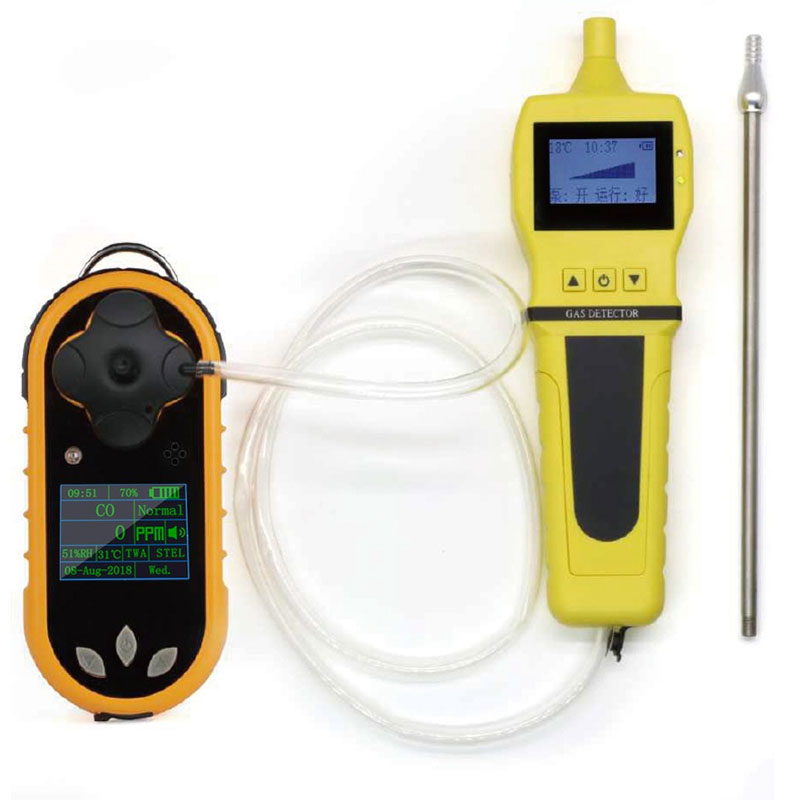

Zetron K100 Diffusion Sampling CO Detector

K-100 portable gas detector with large LCD. It can monitor CO, H2S, O2 and combustible gas simultaneously. The instrument features two instant alarms with audio/visual and vibratory indicators, a rechargeable battery, and simple use.

Details

K-100 Portable Single Gas Detector

OVERVIEW

K-100 portable gas detector with large LCD. It can monitor CO, H2S, O2 and combustible gas simultaneously. The instrument features two instant alarms with audio/visual and vibratory indicators, a rechargeable battery, and simple use.

FEATURE

1. Astigmatic design is applied to rugged surroundings;

2. Continuously gas concentration and composition of colorful LCD real-time display;

3. Rechargeable lithium battery (continuous working period can be 16-18 hours);

4. Concentration units ppm and mg/m3 can be switched

5. Built-in vibration alarm which is applied for noisy environments;

6. Two-stage alarm threshold: the low alarm and high alarm point can be adjusted based on actual needs;

7. Simple automatic calibration program and plug-in replaceable sensor;

8. Fully function self-testing: sensor, integrity of battery and circuit, acoustic & visual & vibration three-stage alarm;

9. Small figure and lightweight;

10. Password protection capacity: Only authorized users can modify the preset parameter.


Tag: Portable Gas Detector, Diffusion Type Gas Alarm Detector, Single Gas Detector, Hydrogen Leak Detector, Combustible Gas Leaks, mining industry, Underground Channels, Multiple gas alarm, OEM gas detector, OEM/ODM service

Parameter

Gas sampling method Natural diffusion
Detecting gas Combustible gas, H2S, CO, O2
Accuracy ≦±3% F.S.
Response Time ≦30s
Indication LCD displays real-time and system status; LED, audio, and vibration alerts for gas leakage, fault, and low voltage.
Working environment -20℃~50℃, <95%RH (no dew)
Power Source DC3.7V Li-on battery, 1800mAh
Charging time 4h~6h
Working time ≧10h continuously (without alarming)
Gas Sensor Life 2 years
Explosion-proof grade Ex ib IIBT4 Gb
Protection Grade IP65
Dimensions 140mm×64mm×34mm(L × W × H)
