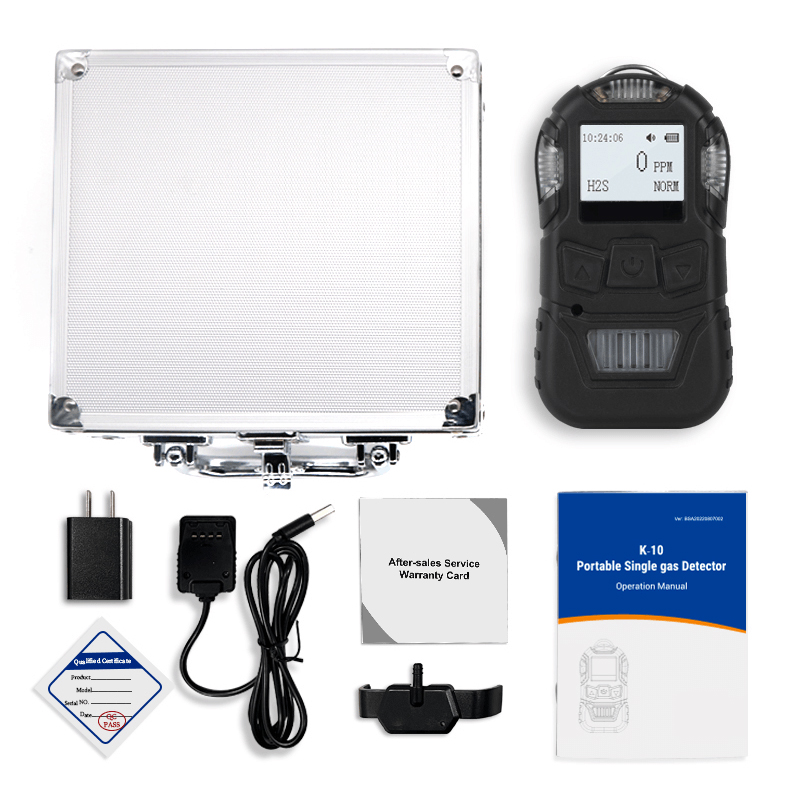

Zetron K-10 Portable Carbon Monoxide Detector

The K10 portable gas detector uses a natural diffusion method to detect gas, and the sensitive element uses high-quality gas sensors.

Details

K-10 Single Gas Detector

OVERVIEW

The K10 portable gas detector uses a natural diffusion method to detect gas, and the sensitive element uses high-quality gas sensors. It has excellent sensitivity and repetitiveness, convenient use, and maintenance, which greatly meets the safety of the industrial sit. This detector is widely used in oil, chemical, environmental protection, metallurgy, refining, gas transmission and distribution, biochemical medicine, agriculture, and other industries.


Tag: IP67 protect level, CO gas detector, Single gas detector, Gas leakage analyzer, Diffusion type gas detecter, Handheld gas monitor, Personal gas analyzer, OEM/ODM service

Parameter

Sampling method natural diffusion
Accuracy ≦ 5% F.S.
Response time T<60s
Explosion proof Ex ib IIB T3 Gb
Alarm Method four alarm method: sound, vibration, light, display
Operating Environment Operating temperature -10℃~55℃
Humidity <95%RH non-condensing
Operating voltage DC3.7V Li battery 1800mAh
Working time ≧8h continuously
Charging time 4h~6h
Sensor life 2 years
Protection category IP67
Weight about 130g (including battery but without accessories)
Dimension 109mm×60mm×30mm

Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-100%LEL 1%lel 20%LEL 50%LEL
C2H4O 0-100ppm 1/0.1ppm 20ppm 50ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C3H8 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C2H5OH 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
NH3 0-100ppm 0.1/1ppm 20ppm 50ppm
CL2 0-20ppm 0.1ppm 5ppm 10ppm
O3 0-10ppm 0.1ppm 2ppm 5ppm
SO2 0-20ppm 0.1/1ppm 5ppm 10ppm


Note: Not all gases and ranges are listed, if you need more information, please contact us.


Application

This detector is widely used in oil, chemical, environmental protection, metallurgy, refining, gas transmission and distribution, biochemical medicine, agriculture, and other industries.
