Zetron FS-5000 Nuclear Radiation Detector

The FS-5000 is a small and medium-high range radiation dose alarm instrument, with the main function of monitoring X-rays, γ-ray, and β-ray.


FS-5000 Nuclear Radiation Detector


The FS-5000 is a small and medium-high range radiation dose alarm instrument, with the main function of monitoring X-rays, γ-ray, and β-ray.

The detector of this instrument is a glass-type Geiger counter (hereinafter referred to as the GM tube), which is characterized by its measurement accuracy and high sensitivity.
This product uses a 32-bit ultra-low power microprocessor and is equipped with a 2.4-inch TFT LCD screen, which is simple to operate and has a strong anti-interference ability. The equipment provides audible, light, and vibration alarms, and the alarm threshold is adjustable.
Compared with similar instruments, it has the advantages of small volume, low power consumption, and rich functions.


1. Real-time dose rate, mean dose rate and count rate,and record cumulative dose simultaneously;
2. The dose rate alarm threshold and dose alarm threshold can be adjusted;
3. With the function of timing dose, the timing time is arbitrarily set between 0-999 hours;
4. Can view the start date of the current cumulative dose;
5. With the dual alarm function of dose rate and dose;

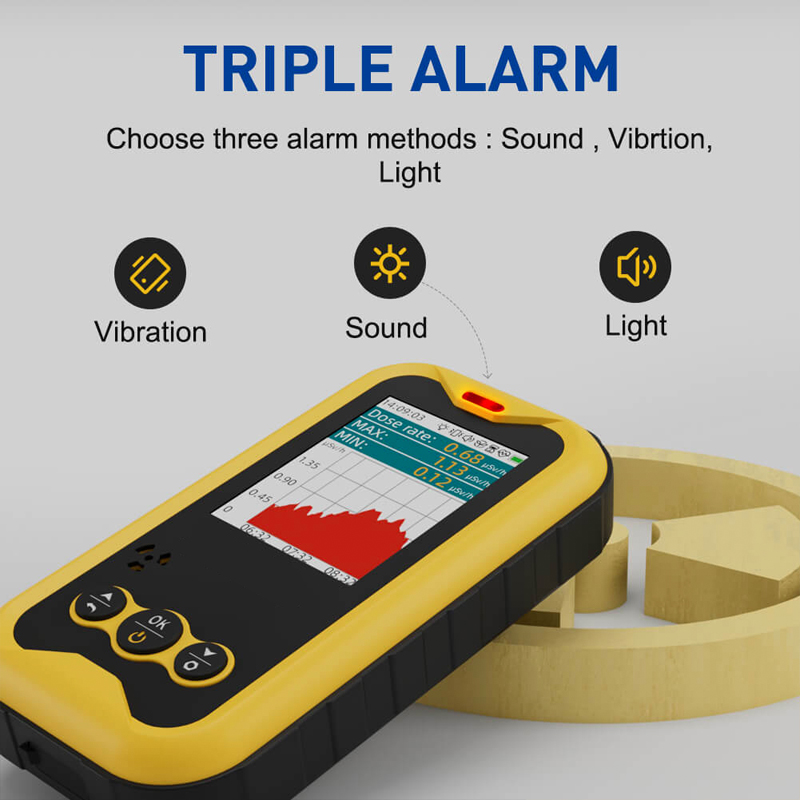

6. Choose three alarm methods: sound, flashing light and vibration;7. When the radiation dose rate exceeds the measuring range, it has the blocking warning function (display 999 MAX);
8. Built-in memory, the cumulative dose value, dose rate curve, dose curve data, alarm record, dose rate alarm threshold, and dose alarm threshold data of power after power loss are not lost;
9. with the function of a calendar clock, which can also ensure the normal operation of the clock after shutdown;
10. Continuous monitoring of battery power, and with a low power state prompt;
11. Free switching of menus in multiple languages;
12. The main interface is a simple and compact display-style free switch;
13. Normal mode and long battery life mode can be switched freely;
14. The screen backlight time and brightness can be adjusted;15.Particle acoustic switch function;

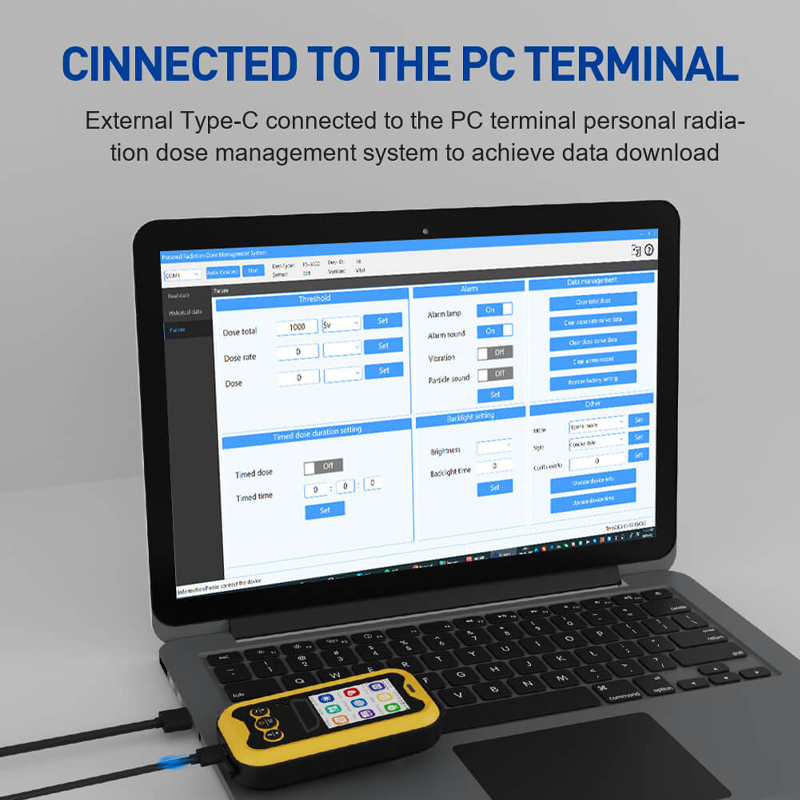

16. External Type-C interface can be used for power supply orconnected to the PC terminal personal radiation dose managementsystem to achieve data download, analysis and management.

Tag: Nuclear Radiation Detector, Glass Geiger Counter, Radiation Dose Alarm, OEM detector, X-rays, γ-ray, β-ray, OEM/ODM service


Sensor Glass Geiger Counter
LCD screen 2.4-inch TFT LCD
Measurement range of dose rate 0.01 uSv/h~50 mSwh
Dose measurement range 0 uSv~1000Sv
Sensitivity >1 CPS/uSv/h
Energy response 48keV~1.5MeV
Relative error <10%(1mSv/h)
Power supply 3.7V rechargeable lithium battery, 1800 mAh
Power consumption <15 mwW (long endurance mode: ≥30 days)
Temperature -10℃~+45℃
Dimension 127*65*27(mm)

160g (including battery)


FS-5000 nuclear radiation detector can be widely used in home decoration detection, irradiation processing enterprises, health and epidemic prevention, radioactive treatment, nuclear laboratory, nuclear power plant, import and export commodity inspection, food, building materials, petrochemical industry, geological survey, scrap steel, industrial nondestructive testing of ionizing radiation environment, individual accept radiation dose regulation and protective occasions.
