Zetron K-G60 Online Flammable Gases Meter

K-G60 fixed gas detector is a new type of gas detector developed in combination with the company\'s many years of experience in gas detection. It is used to detect the concentration of flammable gases or other toxic and harmful gases in the air. We provide gas detector OEM/ODM service.

Inquiry Download manual

Details

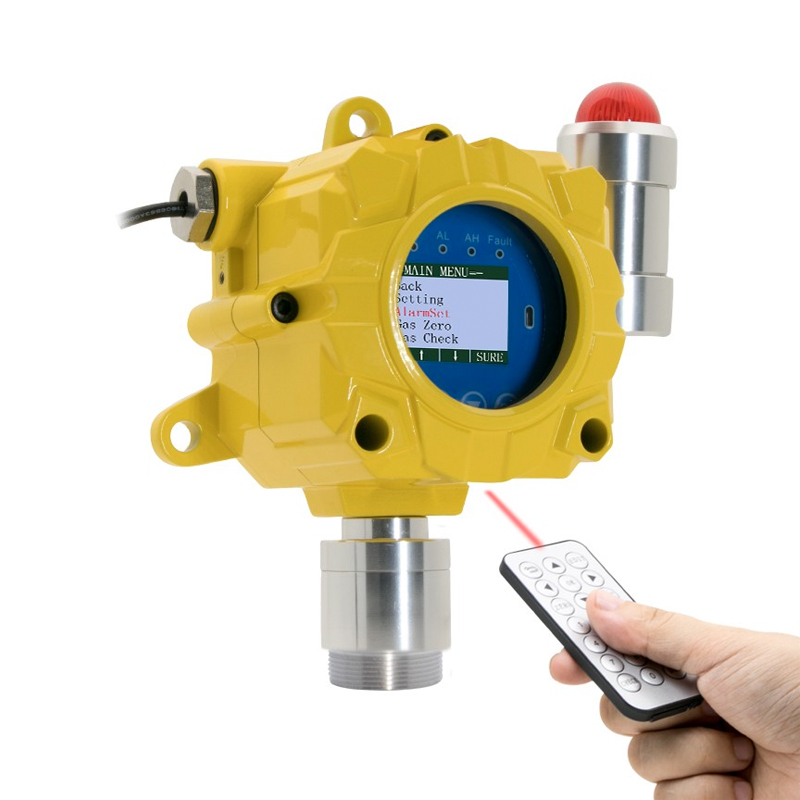

K-G60 Fixed Gas Detector

OVERVIEW

K-G60 fixed gas detector is a new type of gas detector developed in combination with the company's many years of experience in gas detection. It is used to detect the concentration of flammable gases or other toxic and harmful gases in the air.

When the concentration reaches or exceeds the preset alarm value. At the same time, the controller will give an audible and visual alarm, and promptly take measures to prevent explosion and poisoning accidents, thus ensuring the safety of life and property.

The product has the advantages of stable signal, high precision, rapid response, long life, short polarization time, etc. It adopts industrial grade sensor, the instrument casing adopts explosion-proof explosion-proof structure design, 4-20mA standard signal or directly enters DOS system.
The outer casing is made of die-cast aluminum shell with flameproof structure. The groove of the upper cover is designed to lock the casing. The front of the sensor is designed as a downward structure to ensure good contact between the sensor and the gas. The inlet is made of explosion-proof waterproof joint.
Tag: Hydrogen gas detector, Multi-gas detector, Carbon monoxide detector, OEM gas detector, Fixed toxic gas detector, H2S gas detector, Gas leakage analyzer, LPG detecter, Wall mounted gas monitor, Personal gas analyzer, OEM/ODM service

Parameter

Product Name
K-G60 Remote Control Fixed Gas Detector
Explosion proof grade Exd ⅡC T6 Gb
Response time <30S
Power supply DC24V±15%
Working temperature -20℃~50℃
Output current 4-20mA
Working humidity 0-95%RH (no dew)
Contact output Free contact output, max power 1kW
Single input 4~20mA and RS485
Installation method Wall-mounted
Shell material Aluminum
Dimensions 190*150*95mm(L*W*H)

Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-100%LEL 1%lel 20%LEL 50%LEL
C2H4O 0-100ppm 1/0.1ppm 20ppm 50ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C3H8 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
C2H5OH 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
NH3 0-100ppm 0.1/1ppm 20ppm 50ppm
CL2 0-20ppm 0.1ppm 5ppm 10ppm
O3 0-10ppm 0.1ppm 2ppm 5ppm
SO2 0-20ppm 0.1/1ppm 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5000ppm 1ppm/0.1%vol 1000ppm 2000ppm
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1/0.01ppm 10ppm 20ppm
HCL 0-20ppm 0.001/0.1ppm 5ppm 10ppm
CH2O 0-20ppm 1/0.1ppm 5ppm 10ppm
HF 0-100ppm 0.01/0.1ppm 2ppm 5ppm
C7H8/C8H10 0-20ppm 0.01/0.1ppm 5ppm 10ppm

Note: Not all gases and ranges are listed, if you need more information, please contact us.


Application

K-G60 fixed gas detector is widely used in the metallurgical, petroleum, chemical, municipal and other industries.
