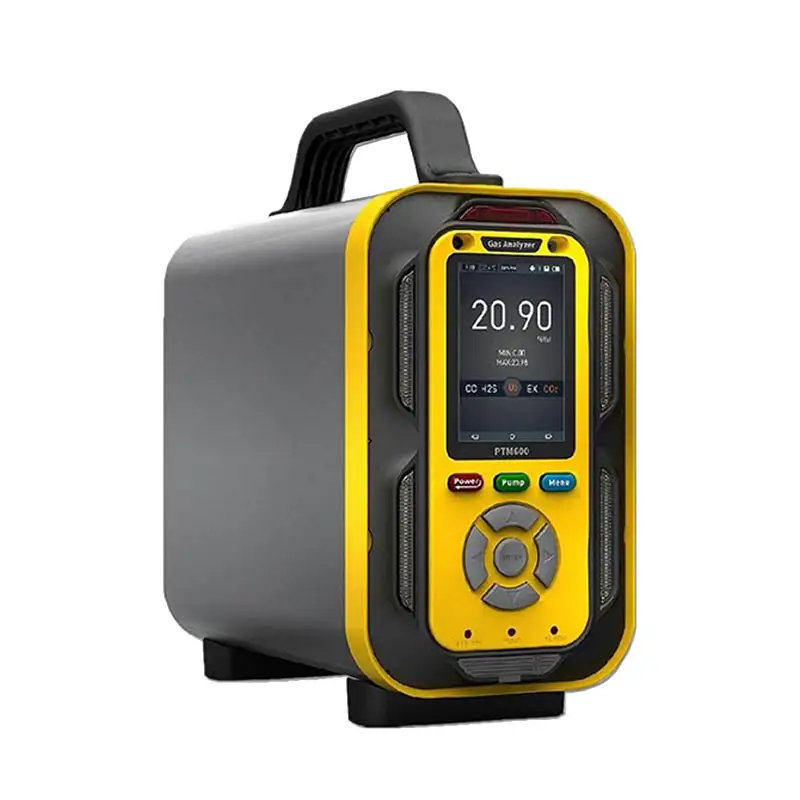

PTM600-AQI Air Quality Monitoring System

PTM600-AQI Air quality monitoring system has the function of measuring multi gases, temperature and humidity. We can support OEM/ODM device.

Inquiry Download manual

Details

PTM600-AQI Air Quality Monitoring System

PTM600-AQI portable gas detector  can be selected to detect 1~8 factors (including gas concentration, temperature and humidity, particulate matter, differential pressure, wind speed, etc.) simultaneously.

Feature:

* Up to 30 kinds of factors can be detected at the same time; the specific detection type depends on the internal sensor configuration of the instrument

* Units are freely switchable, units can be selected: ppm, mg/m3, ug/m3, VOL%, LEL%, pphm, ppb, mg/L.
* Built-in pump suction measurement, sampling distance greater than 10 meters; support real-time detection or timed detection (turn off the air pump when not detecting)
* Rich man-machine interface: 3.5-inch high-definition color screen display, the menu interface uses high-definition simulation graphics to display the function name of each menu.
* High-capacity data storage function, support a variety of storage methods.
* A variety of communication interfaces, optional printing function.
* Three display modes can be switched: Six gas concentrations are displayed at the same time (more than six interfaces are displayed cyclically), single-channel gas concentrations are displayed cyclically, and real-time curves are displayed.
* Data recovery function Partial or full recovery can be selected, eliminating the worries caused by misoperation.
* Can set whether to display the maximum value, minimum value, average value
* A variety of alarm modes alarm mode setting, alarm status indication in multiple directions when the alarm:
     → Alarm mode: sound and light alarm, visual alarm, sound and light + visual alarm.
     → Alarm types: concentration alarm, undervoltage alarm, fault alarm
     → Alarm mode: low alarm, high alarm, interval alarm, weighted average alarm
* Misoperation identification function Concentration calibration misoperation is automatically identified and stopped, which can avoid the bad caused by human factors.
* Zero point automatic tracking Long-term use is not affected by zero point drift
* Multi-stage calibration of target point Ensures linearity and accuracy of measurement, and can comply with both national standards and local metrology bureau standards.
* Intrinsically safe circuit design Explosion-proof, shock-proof, anti-static, anti-electromagnetic interference, through the national standard test
* Protection level up to IP66 splash-proof, dust-proof, explosion-proof, shock-proof


Tag: air quality monitoring system、Gas Concentration Temp & Humidity system、high precision air quality monitor、OEM/ODM device


Parameter

Detection factors Detecting gases (standard): CO, SO2, NO2, O3, PM2.5/PM10

CO：Detection range0-10mg/m3，Resolution0.001mg/m3, High-performance

 electrochemical sensors for environmental testing and analysis

SO2：Detection range0-2500ug/m3，Resolution1ug/m3, High-performance

electrochemical sensors for environmental testing and analysis

NO2：Detection range0-2000ug/m3，Resolution1ug/m3, High-performance

electrochemical sensors for environmental testing and analysis

O3：Detection range 0-2000ug/m3，Resolution1ug/m3，High-performance

electrochemical sensors for environmental testing and analysis

PM2.5：Testing range0-1000ug/m3，Resolution1ug/m3，Laser Principle
PM10：Testing range0-1000ug/m3，Resolution1ug/m3，Laser Principle

Optional TVOC, NH3, CO2 and other gases and temperature and humidity,

particulate matter, differential pressure, wind speed, etc.

can be expanded to detect any 30 detection factors simultaneously.

Detection method

Built-in pump suction type, sampling distance greater than 10 meters high,

 flow 800ML/min, separate switch button operation switch air pump

Display method 3.5 inch 320*240 resolution large screen HD color display
Display content

Real-time concentration, alarm, time, temperature, humidity, storage,

 communication, power, charging status, concentration unit, gas molecular formula, etc.

Detection accuracy ≤±1% FS Uncertainty ≤±1%
Linearity ≤±1% Repeatability ≤±1%
Response time T90≤20seconds Recovery time ≤30seconds
Working power DC3-5V（standard3.7VDC）
Battery capacity

10800mAH rechargeable polymer battery with overcharge, overdischarge,

 overvoltage, short circuit and overheat protection

Use environment

Temperature -40℃~+70℃; Relative humidity: 10-95%RH (non-condensing);

 Pressure: 80kPa-120kPa

Communication Interface

Standard USB charging and communication (can be customized RS485)

, with charging protection function, support USB hot-swapping,

support RS232 communication

Data storage

Standard capacity of 100,000 (optional SD card expansion); support local view,

 delete or data export, storage time interval can be set arbitrarily

Logging

Record calibration log, maintenance log, failure log, sensor life expiration reminder,

 next concentration calibration time reminder function.

Interface language Chinese or English can be set, default Chinese interface
Explosion-proof type Intrinsically safe ExiaⅡCT4Ga
Protection level IP66，Rain and water splash proof, dust proof
Housing material

Engineering plastic + 304 stainless steel + high strength, wear and corrosion resistant

 aluminum alloy

External Dimension 255×210×125mm(L×H×W) Weight 2.5Kg
Standard Accessories

Instruction manual, certificate of conformity, USB charger (including data cable), humidit

y dust filter 1

0.4m stainless steel sampling handle (with standard length 1m hose), high-grade

aluminum alloy instrument case

Optional Features

① Temperature detection: -40℃~+70℃ Accuracy 0.5℃; Humidity detection: 0-100%RH

 Accuracy 3 %RH (while temperature compensation)

② Differential pressure detection, wind speed detection, fall alarm, GPS positioning,

SOS one-touch call for help

③ Wireless data transmission: Bluetooth, WIFI, GPRS wireless transmission, free computer

 software / cloud platform / cell phone APP remote monitoring data

④ Optional internal integrated micro printer or external micro wireless Bluetooth printer

Print content: company name, gas name, date and time, ambient temperature and humidity,

 concentration data, test results (whether qualified)

⑤ Optional 16G or larger capacity SD card supports more than 100,000 data storage capacity
Optional accessories ① 0.9m retractable sampling handle (1 - 10 m hose, standard length 1 m).
② Free uplink communication software (electronic documentation provided)

Application

Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis, air treatment and all other occasions that need to detect and analyze gas concentration.
