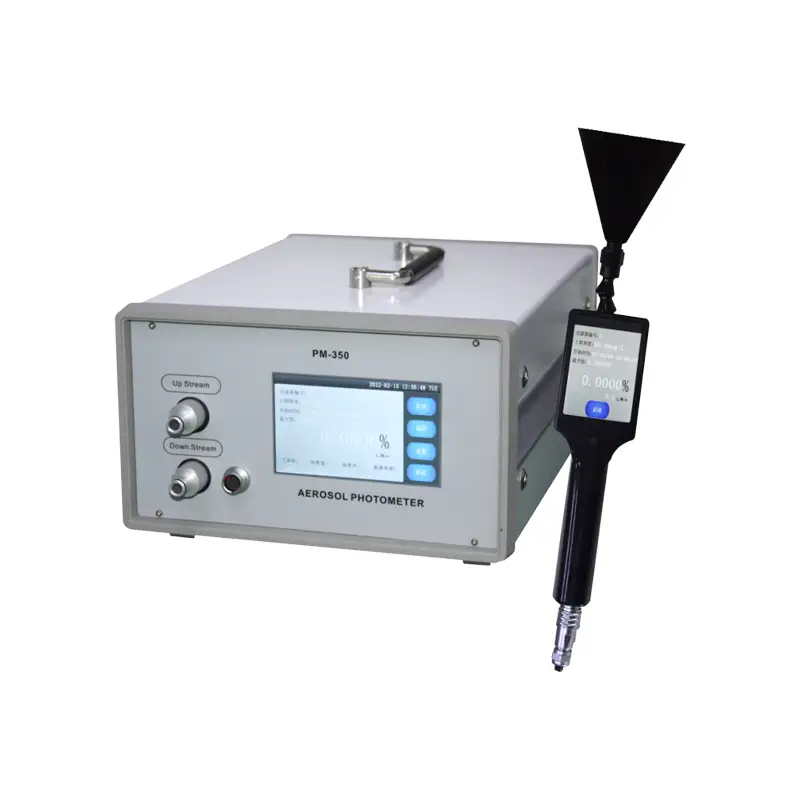

PM350 Aerosol Photometer

PM-350 aerosol photometer is used for on-site leakage detection after the installation of the efficient filter and its system, mainly to check small pinholes and other damage in the filter, such as frame sealing, gasket seal and leakage on the filter frame.The purpose of leakage detection is to check the sealing of the efficient filter and the connection part with the installation frame, timely find the defects in the installation, and take corresponding remedial measures to ensure the cleanliness of the area. We can support OEM/ODM service.

Inquiry Download manual

Details

PM-350 Aerosol Photometer
The PM-350 can automatically switch the upstream and downstream aerosol concentration to determine the filter for leakage. The portable scanning probe enables the operator to quickly and accurately identify the leakage points in remote locations and determine other leakage ratios, and when the alarm line is exceeded, the display board displays an alarm.




Tag:  Aerosol Photometer、 Aerosol Generator 、Aerosol Photometer for Cleanroom、On-site Leakage Detection、Flow Rate 28.3L/min、OEM/ODM service




Parameter

Product Name
Aerosol photometer
Item
PM-350
Display Range
0.0001% -100.0% Colorful LCD Display
Range
0m g/m3～120mg/m3
Resolution Read a value
1% (0.01% to 100%)
Repetitiveness Read a value
0.5% (0.01% -to 100%)
Flow Rate Range
1cfm（28.3L/min）±10%
Automatically Zero
Auto-zero on startup
Alarm
Sound and light alarm
Communication Interface
USB, a wireless printer
Types of aerosols
PAO,DOP Approvals
Power Supply
AC 220V 50/60Hz
External Dimensions
258 (long) x178 (wide) x360 (deep)
Weight
9.8kg (Ontology), 10.3kg (Ontology, scanning probe)

Application

Pharmaceutical industry (clean room, laminar flow table, biosafety cabinet, glove box, HEPA vacuum cleaner, HVAC system, HEPA filter, ULPA filter, negative pressure filter device, operating room) filter leak detection
