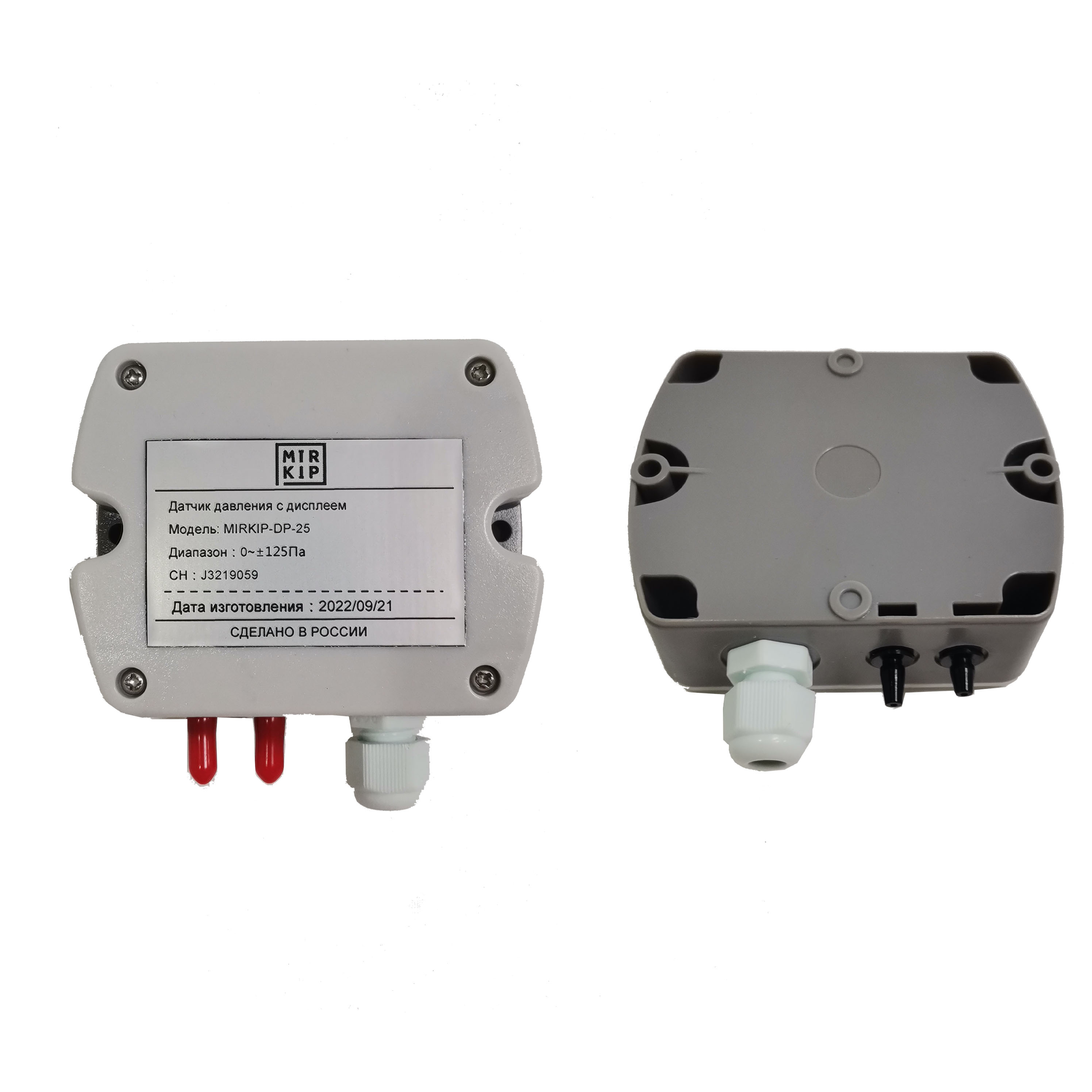

DP-25 Differential Pressure Transmitter

The DP-25 differential pressure transmitter can quickly measure the differential pressure of air or non-corrosive gases and display the differential pressure digitally with a 4-bit LCD liquid crystal.

Inquiry Download manual

Details

DP-25 Differential Pressure Transmitter

OVERVIEW

The DP-25 differential pressure transmitter can quickly measure the differential pressure of air or non-corrosive gases and display the differential pressure digitally with a 4-bit LCD liquid crystal. The instrument selects TE (Tyco) high-precision differential pressure sensor, a variety of range specifications are optional, and with advanced circuit design and structure design, stable and reliable quality, high test accuracy, clear display numbers, easy to use, can be widely used in electronics, pharmaceutical, biotechnology, aerospace and other production, scientific research departments, It is an ideal instrument for pharmaceutical enterprises and quality supervision departments to implement GMP standards and strengthen production environment management.

FEATURE

●Reasonable structure design, compact size, and convenient installation.

●RS485, 4-20mA, 0-5V or 0-10V multiple output options.
●According to customer-specified requirements customized range, flexible and convenient.
●Anti vibration, low drift.
●4 LCD liquid crystal display, intuitive reading, clear.
●The site can directly adjust the zero.
●Add complex filtering algorithm, the degree is more stable.
●Standard MODBUS RTU 485.

●Meets the GMP standards for clean rooms and the EU and FDA standards.


Parameter

Range Accuracy Pressure Resolution
0-±125Pa ±0.6Pa 100psi 0.1Pa
0-±250Pa ±1Pa 100psi 0.1Pa
0-±500Pa ±1.25Pa 100psi 0.1Pa
0- 1000Pa ±2.5Pa 100psi 1Pa
0- 2500Pa ±6.25Pa 100psi 1Pa
0- 5000Pa ±12.5Pa 100psi 1Pa


Work environment Temp:-10～50℃ Humidity:≤85%RH
Output load Voltage type output is more than 1000Ω, current type output is less than 500Ω
Measurement medium Air or neutral gas
Size 90×90×30 (mm)
Protect level IP65
Power DC12～24V/100mA


Application

It can be widely used in electronics, pharmaceutical, biotechnology, aerospace and other production, scientific research departments, It is an ideal instrument for pharmaceutical enterprises and quality supervision departments to implement GMP standards and strengthen production environment management.
