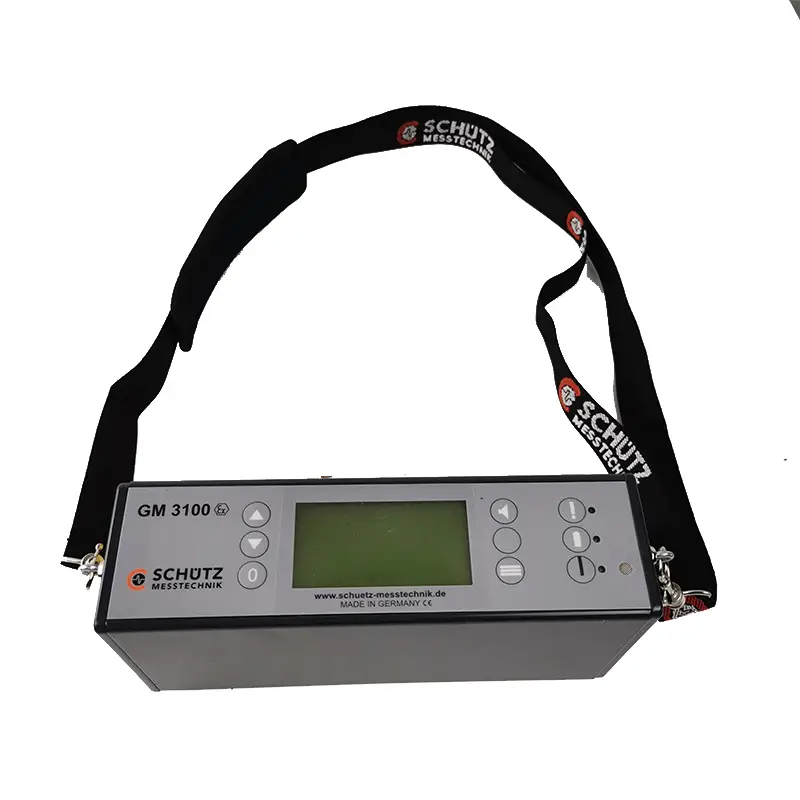

GM 3100 Using new infrared measurement technology, the instrument accurately identifies natural gas and CO2, eliminating cross-sensitivity issues.
OVERVIEW
GM3100 is an all-in-one instrument for leak detection and primary line detection. Using new infrared measurement technology, the instrument accurately identifies natural gas and CO2, eliminating cross-sensitivity issues.
FEATURE
1. Working area preview
2.Compensated CH4 and CO2 measurement
3. Easy maintenance with intelligent sensors
4. O2, H2S, CO can also be detected
5. Graphical menu
6. Flow rate preview
7. Durable aluminum housing
Tag: Emissions gas monitor, Flue gas analyzer, Portable Gas Pipeline Network Detector, NOx Toxic gas leak analyzer, Diesel Ship Engines Emission Detector, 4 in 1 Gas Detector, OEM/ODM service
Display | Graphical LCD display with automatic illumination |
Pump | 1 ppm |
Sensitivity | Diaphragm pump with an adjustable flow rate |
Sensor type | Semiconductor sensor, chemical sensor, IR CH4, IR CO2 (optional) |
Gas type | Methane, Hydrogen, Carbon monoxide Oxygen, Hydrogen sulfide |
Measuring range |
0-10ppm0-20ppm0-100ppm0-1000ppm (vol.%) 0-1 vol.%0-10vol.%0-100vol.% |
Power supply | 3x1.2V rechargeable battery or 3x1.5V battery |
Temperature range | -20'C~+40'C |
Explosion-proof | EEXibd IIB T3, Class II Group 2 permitted for Exzone1 |
Protection class | IP 54 |
Operating time | 15 hours of normal use |
Dimensions | 215x100x60mm |
Weight | 1.8 kg |
Multi-functional application
- Gas leak detection in pipeline networks
- Locating leak points through probe holes
- Measurement of the concentration in the pipeline
