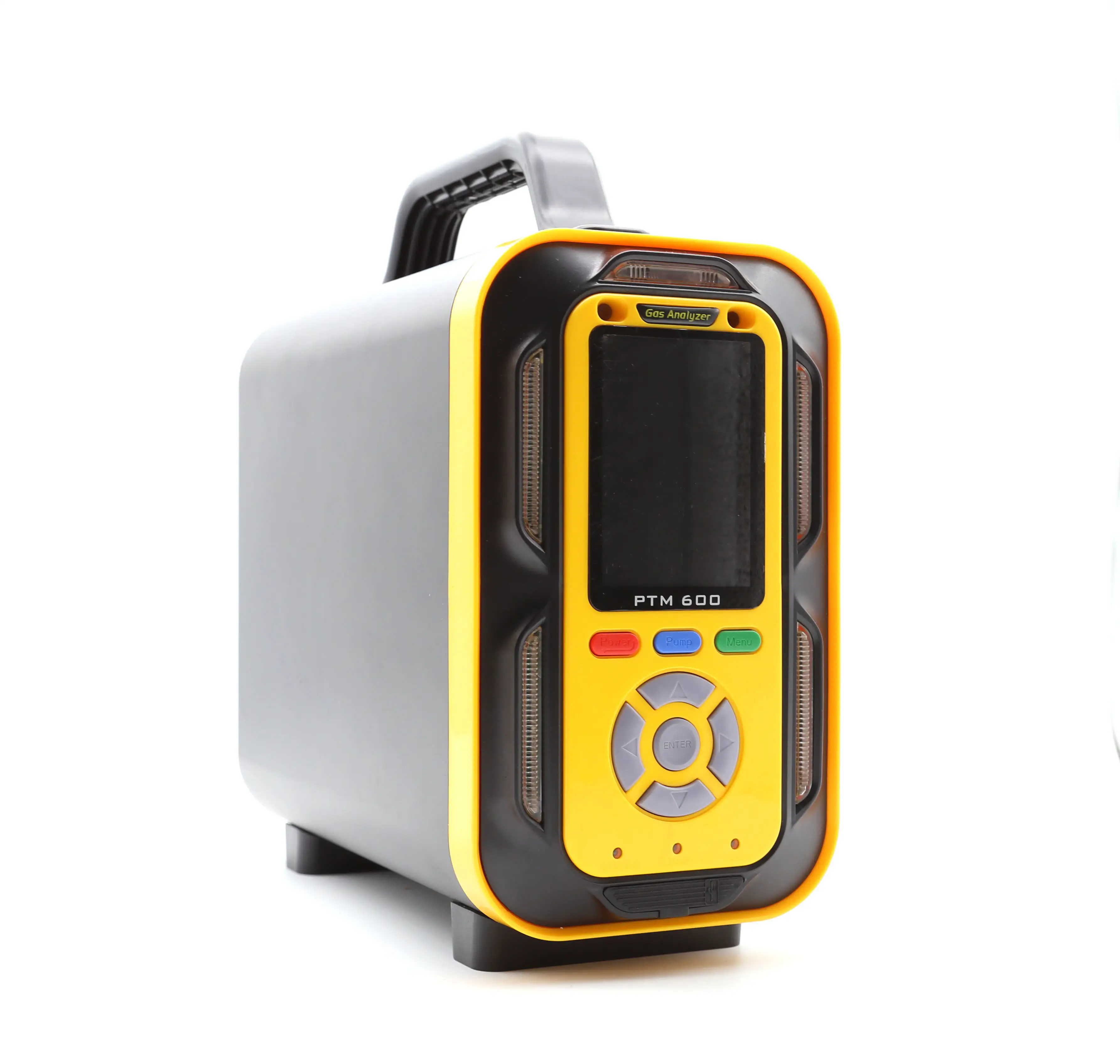

PTM600-N2O Handheld Medical Institutions Nitrous Oxide Gas Analyzer

PTM600-N2O is provided with high measurement precision, stable performance and simple operation and convenient to carry. It is suitable for indoor environment of family, office, inside of cars and natural environment, etc.

Inquiry Download manual

Details

PTM600 portable gas detector

PTM600 portable gas detector has the function of measuring multi gases, temperature and humidity.
The product is provided with high measurement precision, stable performance and simple operation and convenient to carry. It is suitable for indoor environment of family, office, inside of cars and natural environment, etc.

It is possible to simultaneously detect 1 ~ 6 types of gases, which can be expanded to 18 or more types of gases, and the types for detection are more than 500 types.



Parameter

Display method
3.5 inch 320*240 resolution large screen HD color display
Display content
Real-time concentration, alarm, time, temperature, humidity, storage, communication, power, charging status, concentration unit,
gas molecular formula, etc.
Detection accuracy
≤±1% FS
Uncertainty
≤±1%
Linearity
≤±1%
Repeatability
≤±1%
Response time
T90≤20seconds
Recovery time
≤30seconds
Working power
DC3-5V（standard3.7VDC）
Battery capacity
10800mAH rechargeable polymer battery with overcharge, overdischarge, overvoltage, short circuit and overheat protection
Use environment
Temperature -40℃~+70℃; Relative humidity: 10-95%RH (non-condensing); Pressure: 80kPa-120kPa
Communication Interface
Standard USB charging and communication (can be customized RS485), with charging protection function, support USB hot-swapping,
support RS232 communication
Data storage
Standard capacity of 100,000 (optional SD card expansion); support local view, delete or data export, storage time interval can be
set arbitrarily
Logging
Record calibration log, maintenance log, failure log, sensor life expiration reminder, next concentration calibration time
reminder function.
Interface language
Chinese or English can be set, default Chinese interface
Explosion-proof type
Intrinsically safe ExiaⅡCT4Ga
Protection level
IP66，Rain and water splash proof, dust proof
Housing material
Engineering plastic + 304 stainless steel + high strength, wear and corrosion resistant aluminum alloy
External Dimension
255×210×125mm(L×H×W)
Weight
2.5Kg

Application

Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis, air treatment and all other occasions that need to detect and analyze gas concentration.
