MIC500-O3 Odor Gas Leak Detector

MIC500-3 have multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm. We can support OEM/ODM service.

Inquiry Download manual

Details

Zetron MIC500 Odor Gas Leak Detector

Gases to be detected
Range
Accurancy
Resolution
Response time T90
Ozone ( O3 )
0-100ppm
＜±2%(F.S)
0.01ppm
≤20 seconds
Nitrogen oxide ( NOX )
0-100ppm
＜±2%(F.S)
0.01ppm
≤30 seconds
Chlorine gas ( CL2 )
0-10ppm
＜±2%(F.S)
0.001ppm
≤30 seconds
Ammonia gas ( NH3 )
0-100ppm
＜±2%(F.S)
0.01ppm
≤30 seconds
Oxygen gas ( O2 )
0-30%Vol
＜±2%(F.S)
0.01%Vol
≤10 seconds
Nitrogen gas ( N2 )
0-100%Vol
＜±2%(F.S)
0.01%Vol
≤10 seconds
Carbon monoxide ( CO )
0-100ppm
＜±2%(F.S)
0.1ppm
≤25 seconds
Carbon dioxide ( CO2 )
0-100%Vol
＜±2%(F.S)
0.01%Vol
≤30 seconds
Formaldehyde ( CH2O )
0-100ppm
＜±2%(F.S)
0.01ppm
≤30 seconds
Ozone ( O3 )
0-100ppm
＜±2%(F.S)
0.01ppm
≤20 seconds
Note: Not all gases and range are listed, if you need more information, please contact us.


Parameter

Gas
Ozone ( O3 )
Range
0-100ppm
other ranges can be customized
Size
210×170×85mm (L×H×W)
Weight
1.8 Kg
Installation method
Pipeline Type
Wall Mounting Type
Display
1.7-inch high-definition color screen
Environment
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
Approvals

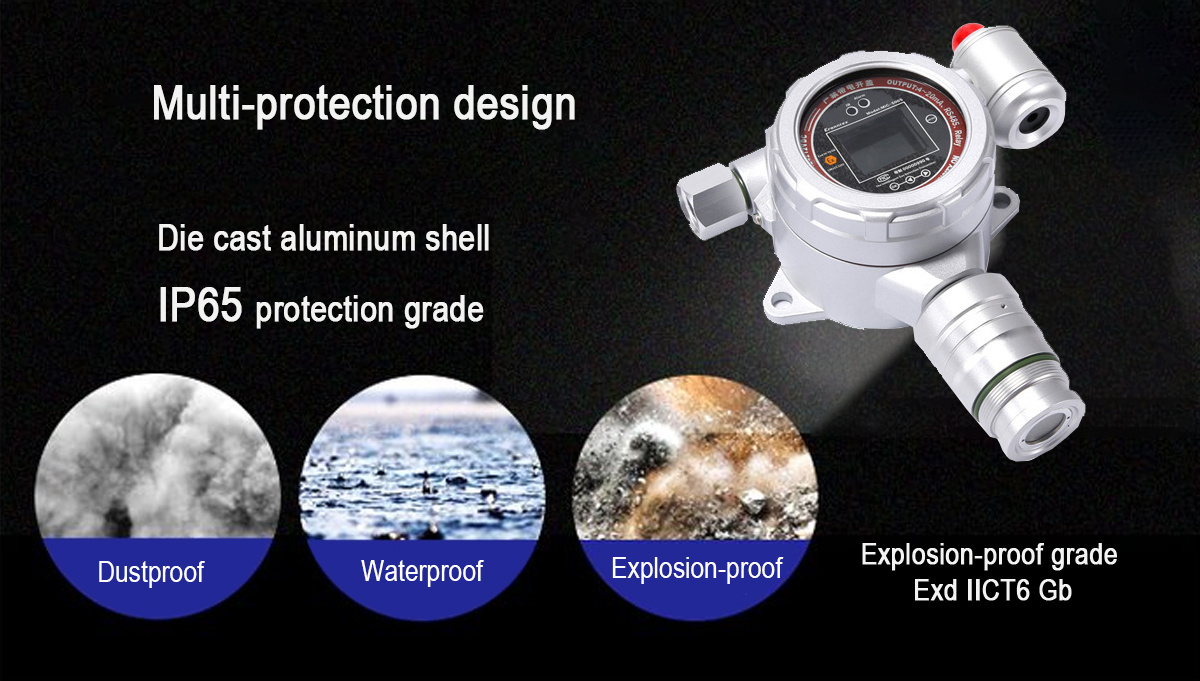

IP65; Exd Ⅱ CT6
Accessories
Manual, qualification certificate, warranty card, outer packaging box
Working Voltage
12 ~ 30VDC direct current, the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
Working Method

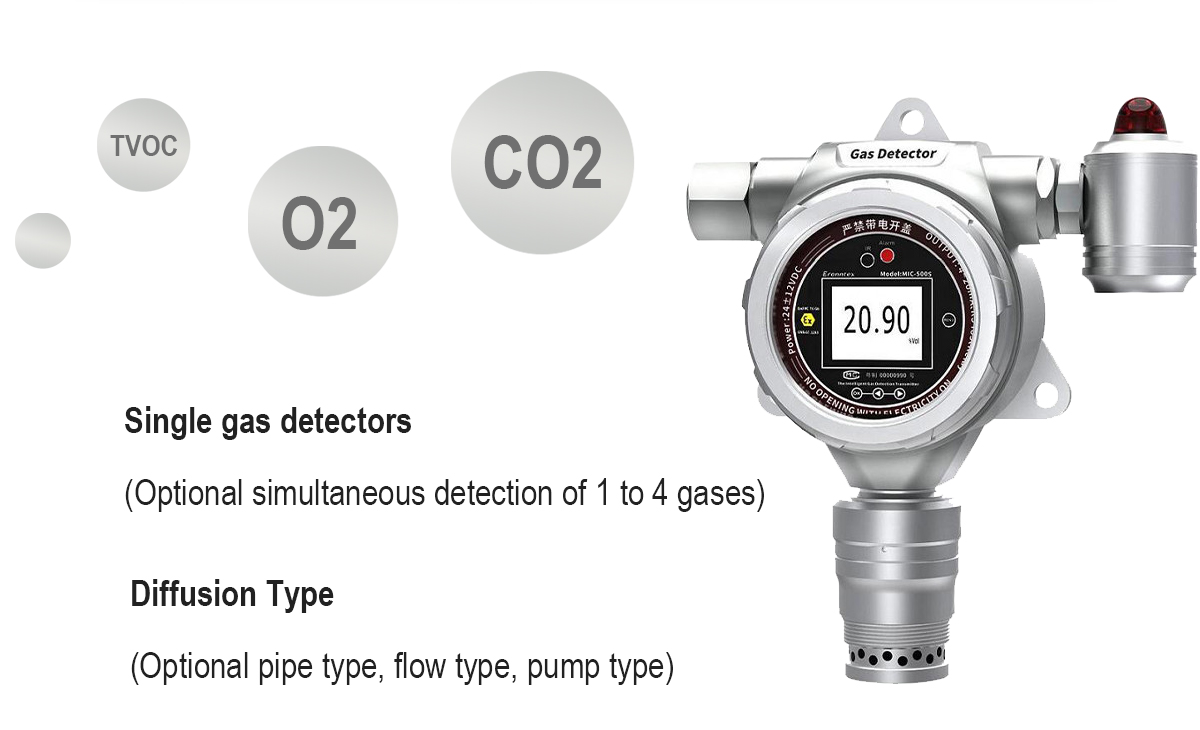

Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type.
Connecting Cable
Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth.
Optional items
Alarms;Wireless Transmission;Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with computer for monitoring.
Installation Type Accessories
(Optional configuration)
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),
vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters
